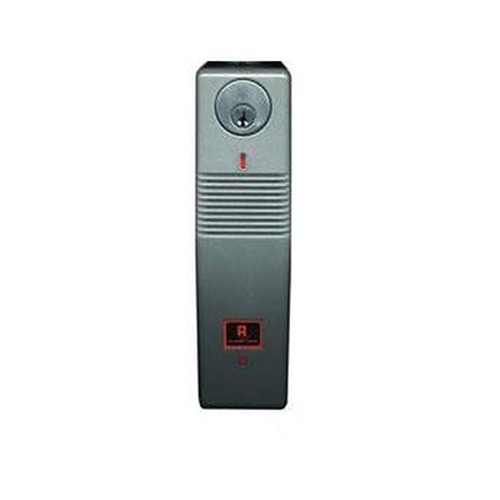

Alarm Lock PG21MS

Narrow Stile Surface Mounted Door Alarm

Quick Product Details

  • Door Alarm
  • Narrow Stile
  • Surface mount
Price: $144.00 /each


Choose Options Below

This Alarm Lock PG21 door alarms are for surface mounting on a door or door frame. It is generally used in applications such as emergency fire escape doors, nursing home stairwell doors, and rear restaurant and theater doors to restrict unauthorized egress.

  • Stock Item
  • Order in the next 31 hours 39 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $144.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish PG21:

Metalic Silver (MS) Metalic Silver (MS)
Metalic Brozne (MB) Metalic Brozne (MB)

Choose Cylinder:

Satin Chrome 1-1/4 Satin Chrome 1-1/4" mortise cylinder-Schlage C Keyway +$14.00
No Mortise Cylinder

Help Me Decide

  • Includes 2 keys


Available Options: Choose Options Above

Product at A Glance

  • Magnetically activated
  • Unauthorized use of door causes alarm to sound and activates LED indicator.
  • 1-1/4" mortise cylinder used for interior activation and standard size rim cylinder used for exterior activation (not supplied)
  • Two selectable arming modes: "Always Armed" or "On/Off".
  • Exit/Entry Delay Time Options: 15 seconds, 1 minute 15 seconds, and 3 minutes 15 seconds.
  • Key Lock Tamper - the cover cannot be removed without a key.
  • Options include: continuous alarm, minute shutdown with auto reset and exit/entry delay.
  • Operated by 9-Volt alkaline battery (battery supplied)
  • External power supply capability
  • Cover tamper protection - unauthorized removal of cover triggers alarm
  • Alarm - Piezo electronic sounder sweep siren, steady or pulsing, 110 dB at 10 feet.
  • Status Indicator – The LED will indicate red when the alarm is armed
Style Door alarm
Application Narrow Stile
Wiring Surface mounted
Dimensions 9" x 2-1/2" x 2-3/8"

More Info

Many facilities have doors which are not used on a standard basis, but they are there for emergencies or certain purposes. Such doors are often found leading to an emergency fire escape, nursing home stairwells or rear restaurant and theater doors. An exit alarm on these doors will discourage their use when unauthorized and will notify authoritative personnel when misused.
