Arrow AL500

Special Order Alarmed Rim Exit Device

Quick Product Details

  • Alarmed Rim Exit Device
  • For wood, hollow metal, fiberglass or aluminum doors
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: AL500

Choose Options Below

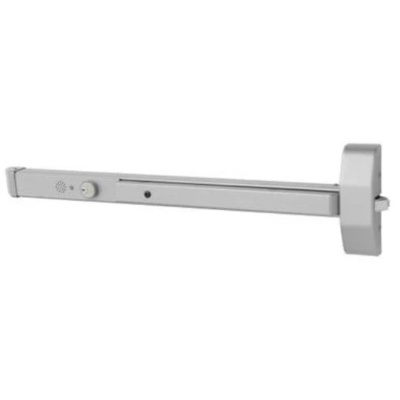

This Arrow AL500 is an alarmed rim exit device for primary and secondary openings. It is designed to fit standard 1-3/4" thick wood, hollow metal, fiberglass or aluminum doors.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

628- Clear Anodized Aluminum 628- Clear Anodized Aluminum

Choose Cylinder 1-1/8:

1-1/8 1-1/8" Satin Chrome Mortise Cylinder Schlage C Keyway +$9.00
No Mortise Cylinder needed

Help Me Decide

  • 1-1/8" Mortise cylinder required with standard Yale cam to arm/disarm alarm
  • Mortise cylinder includes 2 keys.





Choose Select Rail Size:

36"

Overview

Non-Stock Special-Order with 6-8 week lead time.

Available Options: Choose Options Above

  • Finish:

  • Cylinder 1-1/8: info icon

    • 1-1/8" Satin Chrome Mortise Cylinder Schlage C Keyway
    • No Mortise Cylinder needed
  • Select Rail Size:

    • 36"

Product at A Glance

Features:
AL500 Series exit alarm

  • Microprocessor based alarm board
  • When armed, alarm sounds immediately upon rail depression
  • All exit devices have tamper resistant
  • latching (Guarded Latch) Battery powered - 9VDC
  • 103 Db @ 8 ft pulsating horn
  • Flashing red LED provides visible violation indication, reset by key only
  • Low battery alert
  • Field selectable continuous alarm option
  • Automatic re-arming option
  • Inside cylinder operation to arm or disarm unit uses a 1-1/8" (29mm) mortise cylinder with 001 cam. Cylinder ordered separately.
  • UL Listed and cUL Listed
  • UL Listed to Canadian Safety Standards
  • Rail Monitoring and Guarded Latch are standard internal features
  • Minimum door widths: E 32" only, F 32-1/4 - 36", G 36-1/4 - 48"
  • See McKinney’s Transfer Device Solutions Catalog for QC Hinge and cable requirements (if hard wired)
Style Alarmed Panic Exit Device
Application Wood, hollow metal, fiberglass and aluminum doors
Door Thickness 1-3/4"
Handing Non-handed
Deadlatch Stainless steel dead-latching bolt with 3/4" throw

More Info


The Detex V40-EB is an exit device is a durable and aesthetically pleasing panic bar used to prevent losses by discouraging theft by customers and employees. If an unauthorized attempt is made to exit using the door that features this exit device, a 100 decibel alarm will sound to alert authority personnel of the violation. This greatly serves to deter any attempts of theft.
