Arrow GL01SR-26D-306-G73

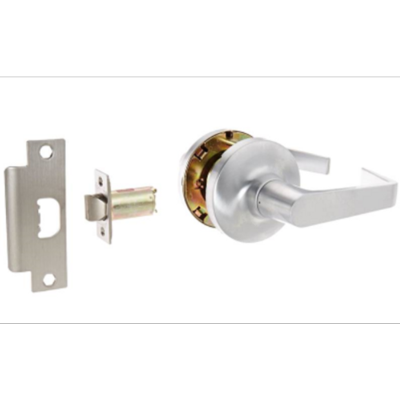

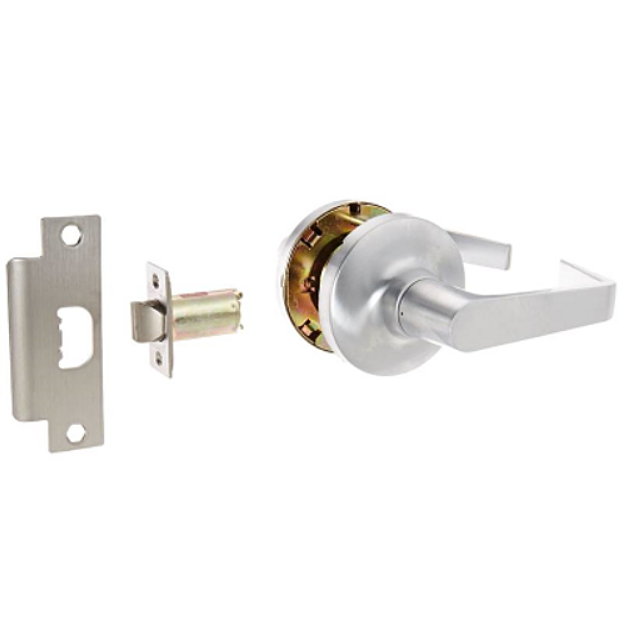

Special Order Grade 1 Passage Lever, 2 3/4 Backset, ANSI Strike, Standard Spring Latch

Quick Product Details

  • Lever Set
  • Standard Duty
  • Passage Function
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: GL01SR-26D-306-G73

Choose Options Below

Arrow GL Series Grade 1 heavy duty levers offer an economically pleasing solution for ADA compliance. The GL solution is designed with the installer in mind, providing fewer subcomponents to allow for an easier to install system. Simply put, the GL Series will be your number one choice when economy is your first priority.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Choose Finish:

Satin Chrome - 626 Satin Chrome - 626

Overview

Non Stock Special Order - 3-4 week lead time.

Features
  • Housing – Interlocking lever tubes are made from dichromate plated steel. The tubes are attached to the rose insert.
  • Thru-Bolts – Removable thru-bolts standard on GL Series
  • OverDrive™ – Freewheeling lever action occurs when latch retraction mechanism disengages from lever handle when handle is locked.
  • Backset – 2-3/4” (70mm) standard. See price book for alternate backsets.
  • Latch – Stainless Steel with 1/2” (13mm) throw standard. Latch housing is steel, zinc dichromate finish for corrosion resistance. 1” (25mm) bore in edge of door is required.
  • Latch Front – Stainless steel. 2-1/4” (57mm) x 1-1/8” (29mm), 1/8” (3mm) in 2” (51mm).
  • Exposed Trim – Levers are pressure cast zinc. Streamline rose scalp of brass or bronze complements other series of lever locks
  • Rose Inserts – Contain coil spring which is a permanent assembly within rose insert
  • Strikes – Stainless steel. ANSI A115.2, 4-7/8” (124mm) x 1-1/4” (32mm) curved lip strike standard.
  • Handing – Non-handed. Levers operate bi-directionally.
Benefits
  • Safety & Security: ANSI/BHMA Grade 1 lock manufactured with high quality materials; specialized functions allow for quick and secure lockdowns
  • Economical solution for ADA Compliance
  • Abuse resistance

Available Options: Choose Options Above

Product at A Glance

Grade 1 Standard Duty
Function Entrance Function:
Latchbolt operated by lever either side except when outside lever is locked by turn-button inside:
When outside lever is locked, latchbolt operated by key outside or turning inside lever:
Inside button must be manually released.
Handing Non Handed
Backset 2-3/4" Standard
Door Thickness 1-3/4" (standard)
Strike 4-7/8" Curved-lip strike with a standard curved lip of 1-1/4" (ANSI A-115.2)
