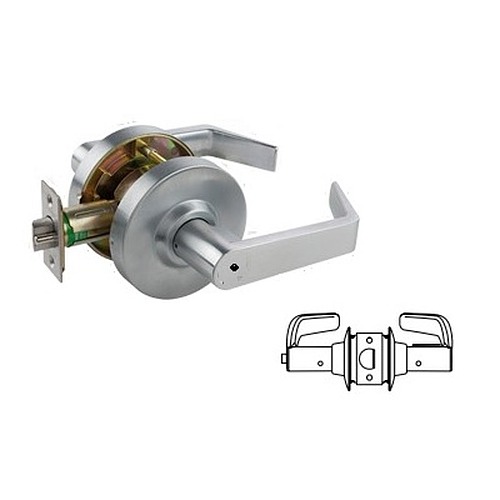

Arrow MLX72-SB-26D-306-R23

Standard Duty Privacy Lever - Special Order Item

Quick Product Details

  • Lever Set
  • Standard Duty
  • Privacy
Price: $95.00 /each

SKU: MLX72-SB-26D-306-R23

Choose Options Below

Arrow MLX MLX72-SB-26D-306-R23 is a robust BHMA Grade 2 Passage function lockset featuring a freewheeling lever for abuse resistance, two-screw lock install for quick installation and a 10 year mechanical warranty.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from. Special order 3-4 Week Manufacture Lead time.

  • Limited Stock!
  • Order in the next 36 hours 13 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $95.00

Choose Finish:

Satin Chrome - 626 Satin Chrome - 626


Suited for:
Standard duty commercial exterior and interior doors

Quality and Safety:
  • ANSI/BHMA A156.2, Series 4000, Grade 2
  • Underwriters Laboratories (UL and CUL) listed for use on 3 hour, A label single swinging doors.
  • 10 Year Mechanical Warranty
  • Federal Specification FF-H-106C
  • Meets American with Disabilities Act Requirements. ANSI A117.1 Accessibility Code
  • California State Reference Code–for levers returning to within 1/2" (12.7mm) of door surface.
  • US26D Satin Chrome Finish
  • Privacy Function Lever
Door Preparation: (161 standard)

Available Options: Choose Options Above

Product at A Glance

Style Key in lever lock
Grade 2 Standard Duty
Handing Non Handed
Function Bathroom/Privacy Function;
- Push button on the inside locks the outside lever
- Turn inside lever
Backset 2-3/4" Standard
Door Thickness 1-3/4" (standard)
Strike 4-7/8" Curved-lip strike with a standard curved lip of 1-1/4" (ANSI A-115.2)



Scroll for More Product Information
