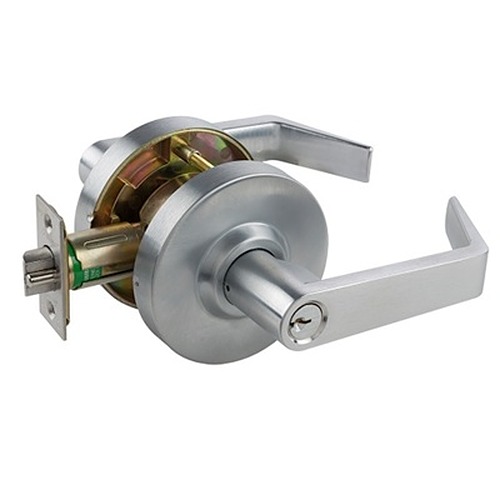

Arrow MLX81-SB-26D-306

Standard Duty Entrance Lever

Quick Product Details

  • Lever Set
  • Standard Duty
  • Entrance
SKU: MLX81-SB-26D-306

Price: $70.00 /each

Choose Options Below

Arrow MLX MLX81-SB-26D-306 is a robust BHMA Grade 2 Entry function lockset featuring a freewheeling lever for abuse resistance, two-screw lock install for quick installation and a 10 year mechanical warranty.

  • In Stock!
  • Order in the next 19 hours 11 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $70.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

Satin Chrome - 626 Satin Chrome - 626

Choose Cylinder:

IC Prepp-Lock prepared to accept Best 6- or 7-pin SFIC cylinder (Not Included)
ARKD, Arrow 6 pin cylinder, AR keyway keyed different

Help Me Decide

  •  IC Prep, Lock prepared to accept a 6- or 7-pin  Best type SFIC cylinder (not included)
  • ARKD, Standard 6 pin cylinder with Arrow AR keyway, keyed different.

Overview

Suited for:
Standard duty commercial exterior and interior doors

Quality and Safety:
  • ANSI/BHMA A156.2, Series 4000, Grade 2
  • Underwriters Laboratories (UL and CUL) listed for use on 3 hour, A label single swinging doors.
  • 10 Year Mechanical Warranty
  • Federal Specification FF-H-106C
  • Meets American with Disabilities Act Requirements. ANSI A117.1 Accessibility Code
  • California State Reference Code–for levers returning to within 1/2" (12.7mm) of door surface.
Door Preparation: (161 standard)

Available Options: Choose Options Above

  • Finish:

  • Cylinder: info icon

    • IC Prepp-Lock prepared to accept Best 6- or 7-pin SFIC cylinder (Not Included)
    • ARKD, Arrow 6 pin cylinder, AR keyway keyed different

Product at A Glance

Style Key in lever lock
Grade 2 Standard Duty
Function Entrance Function:
Latchbolt operated by lever either side except when outside lever is locked by turn-button inside:
When outside lever is locked, latchbolt operated by key outside or turning inside lever:
Inside button must be manually released.
Handing Non Handed
Backset 2-3/4" Standard
Door Thickness 1-3/4" (standard)
Strike 4-7/8" Curved-lip strike with a standard curved lip of 1-1/4" (ANSI A-115.2)
Cylinder Choose SFIC IC core prep or Arrow 6 pin standard cylinder keyed different
