Arrow RL-12SR-26D-IC-R62-R70

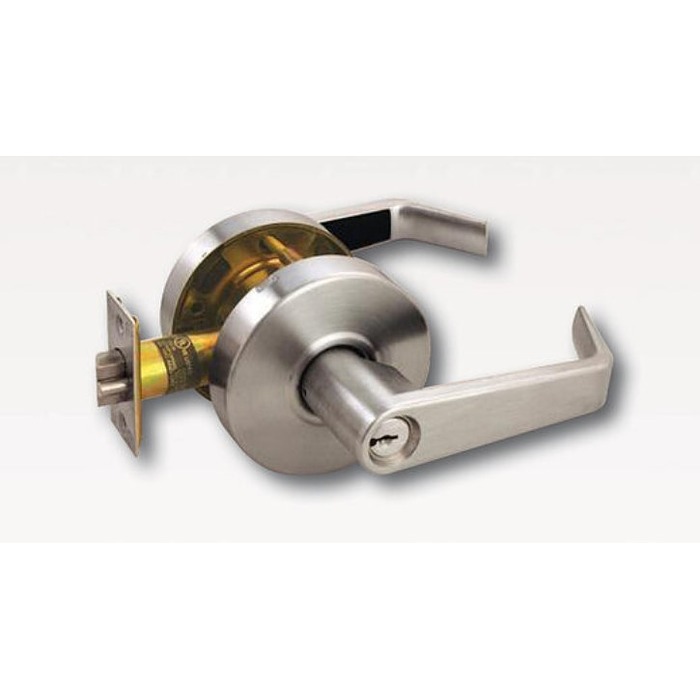

Standard Duty Storeroom Lever with SFIC IC core Prep

Price: $75.00 /each

SKU: RL-12SR-26D-IC-R62-R70

Choose Options Below

Arrow RL12-SR-26D-R62-R71-IC is a BHMA Grade 2 Storeroom function lockset. Provided with prep for SFIC core, core not included.

  • Stock Item
  • Order in the next 18 hours 48 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $75.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

Satin Chrome - 626 Satin Chrome - 626

Choose IC Core:

1C7A1-7 pin Best Uncombinated IC core + $37.00 1C7A1-7 pin Best Uncombinated IC core +$37.00
Keyed Core,ME33-6B010 6 Pin + $34.00 Keyed Core,ME33-6B010 6 Pin +$34.00
No IC Core Needed

Help Me Decide

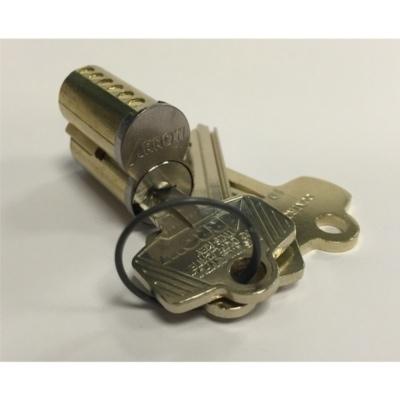

  • The Best Uncombinated 7 pin IC core 1C7A1-7 must be keyed by a locksmith. No keys, key blanks or control keys are included.
  • Arrow brand Small Format Keyed 6 pin IC core, is keyed different with 2 keys and includes a control key which is required to install and remove IC core.


Overview

  • ANSI/BHMA A156.2, Series 4000, Grade 2
  • Underwriters Laboratories (UL and CUL) listed for use on 3 hour, A label single swinging doors.
  • Meets American with Disabilities Act Requirements. ANSI A117.1 Accessibility Code
  • Door Preparation: (161 standard)
  • Cross-bore hole - 2-1/8”
  • 1” edge bore hole
  • Mortise - width 1-1/8”,  height 2-1/4”
  • ANSI 4-7/8" Strike
  • 2-3/8" Backset Dead latch

Available Options: Choose Options Above

  • Finish:

  • IC Core: info icon

    • 1C7A1-7 pin Best Uncombinated IC core
    • Keyed Core,ME33-6B010 6 Pin
    • No IC Core Needed

Product at A Glance

Style Key in lever lock
Grade 2 Standard Duty
Function Storeroom Function:
Outside lever always locked.
Latchbolt operated by key in outside lever, or by turning inside lever.
Handing Non Handed
Backset 2-3/8" Standard
Door Thickness 1-3/4" (standard)
Strike 4-7/8" Curved-lip strike with a standard curved lip of 1-1/4" (ANSI A-115.2)
Cylinder SFIC Core Prep, Core Not Inluded
