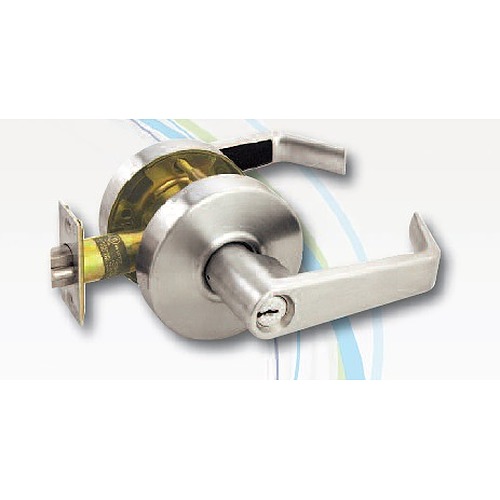

Arrow RL11SR-26D-R62-R71-CSKD

Special Order Standard Duty Entrance Lever

Quick Product Details

  • Lever Set
  • Standard Duty
  • Entrance
Price: $60.00 /each
Special Order non-stock item Requires 6 week lead time

SKU: RL11SR-26D-R62-R71-CSKD

Choose Options Below

Arrow RL11Entery lever cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Price: $60.00

Choose Finish:

US26D Satin Chrome US26D Satin Chrome

Overview

Special order non stock item with 4 week lead time.
  • Standard duty commercial entry lock.
  • Sierra style lever with satin chrome 26D finish.
  • ANSI/BHMA A156.2, Series 4000, Grade 2.
  • Underwriters Laboratories (UL and CUL) listed for use on 3 hour, A label single swinging doors.
  • Meets American with Disabilities Act Requirements. ANSI A117.1 Accessibility Code.
  • Cross-bore hole - 2-1/8”.
  • Backset - 2-3/4”.
  • 1” edge bore hole.
  • Mortise - width 1-1/8”,  height 2-1/4”.

Available Options: Choose Options Above

Product at A Glance

Style Key in lever lock
Grade 2 Standard Duty
Function Entrance Function:
Latchbolt operated by lever either side except when outside lever is locked by turn-button inside:
When outside lever is locked, latchbolt operated by key outside or turning inside lever:
Inside button must be manually released.
Handing Non Handed
Backset 2-3/4" Standard
Door Thickness 1-3/4" (standard)
Strike 4-7/8" Curved-lip strike with a standard curved lip of 1-1/4" (ANSI A-115.2)
Cylinder Standard key in lever cylinder- Schlage C keyway keyed different
