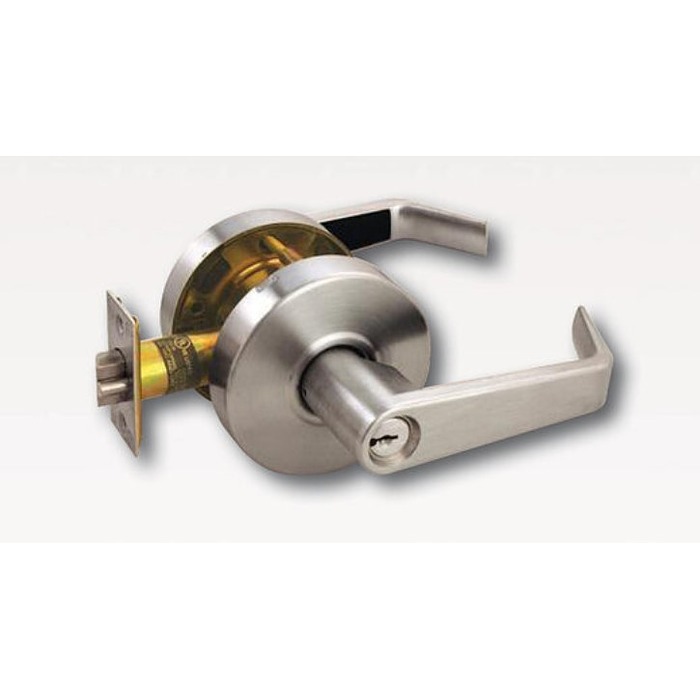

Arrow RL12-SR-26D-R62-R71-KD

Standard Duty Storeroom Lever

Quick Product Details

  • Lever Set
  • Standard Duty
  • Storeroom Function
Price: $75.00 /each

SKU: RL12-SR-26D-R62-R71-KD

Choose Options Below

Arrow RL12 storeroom lever cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Stock Item
  • Order in the next 14 hours 50 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $75.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

US26D Satin Chrome US26D Satin Chrome

Choose Keyway:

AR Keyway, Keyed Different AR Keyway, Keyed Different
CS Keyway, Keyed Different CS Keyway, Keyed Different


  • Standard duty commercial storeroom lock.
  • Sierra style lever with satin chrome 26D finish.
  • ANSI/BHMA A156.2, Series 4000, Grade 2.
  • Underwriters Laboratories (UL and CUL) listed for use on 3 hour, A label single swinging doors.
  • Meets American with Disabilities Act Requirements. ANSI A117.1 Accessibility Code.
  • Cross-bore hole - 2-1/8”.
  • Backset - 2-3/4” with Dead Latch option
  • 1” edge bore hole.
  • Mortise - width 1-1/8”,  height 2-1/4”.
  • ANSI 115.2 4-7/8" Strike

Available Options: Choose Options Above

  • Finish:

  • Keyway:

    • AR Keyway, Keyed Different
    • CS Keyway, Keyed Different

Product at A Glance

Style Key in lever lock
Grade 2 Standard Duty
Handing Non Handed
Function Storeroom Function:
- Entrance by lever when latchbolt is released by key
- Key is removable only when it's locked
- ANSI 09
Backset 2-3/4" Standard
Door Thickness 1-3/4" (standard)
Strike 4-7/8" Curved-lip strike with a standard curved lip of 1-1/4" (ANSI A-115.2)
Cylinder Standard key in lever cylinder- Arrow AR or CS keyway, keyed different
