ASI 0473

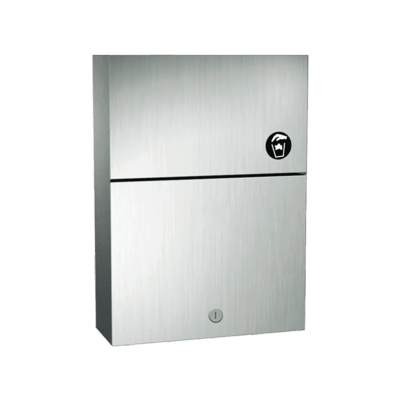

ASI 0473 Sanitary Napkin Disposal with Lock, Surface Mounted, Stainless Steel

Quick Product Details

  • (This Product Requires an Additional 2 Days Shipping)
  • Surface mounted, locking variant of the ASI 0473 series
  • 22-gauge Type 304 stainless steel, satin finish
  • Tumbler lock prevents unauthorized access or removal of waste container
  • Self-closing spring hinge door, push to deposit
  • 1.5-gallon removable waste container with Z-clip retainer
  • ADA compliant when installed per 2010 ADA Accessibility Standards
  • 1-year warranty
Price: $121.00 /each

SKU: 0473

Choose Options Below

(This Product Requires an Additional 2 Days Shipping) The ASI 0473 is the surface-mounted, locking version of the ASI 0473 sanitary napkin disposal. Built from 22-gauge Type 304 stainless steel, it mounts directly to the wall and includes a tumbler lock that restricts access to authorized maintenance staff only. The self-closing door and removable 1.5-gallon waste container make servicing quick and contained.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Stock Item
  • FREE Same-Day Shipping*When ordered before 2PM ET
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $121.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Mounting:

A - Surface Mounting

Choose Lock:

0 - No Lock 0 - No Lock
1 - Lock + $2.00 1 - Lock +$2.00

Overview

The ASI 0473 is a surface-mounted sanitary napkin disposal built for women's restroom stalls in commercial and institutional buildings. The suffix tells you exactly what you are getting: the "1" means a tumbler lock is included, and the "A" means surface mounted. Without those options, the base 0473 is a recessed unit with no lock.

The cabinet, door, flanges, and waste receptacle are all 22-gauge Type 304 stainless steel with a satin finish. A stainless steel spring hinge keeps the door self-closing after each deposit. Inside, the 1.5-gallon removable waste container is held in place by a Z-clip retainer and the tumbler lock, so it will not shift or be removed without a key. Servicing is done by unlocking the unit, removing the container, and inverting it over a collection bag.

Install height should place the top of the disposal door between 24 and 34 inches above finished floor for ADA compliance. Mounting uses number-10 self-threading screws through four holes in the cabinet back. The unit qualifies for LEED credits under MR 4.1, MR 4.2, MR 6, EQ 4.1, EQ 4.2, and EQ 4.4.

Available Options: Choose Options Above

  • Mounting:

    • A - Surface Mounting
  • Lock:

    • 0 - No Lock
    • 1 - Lock

Product at A Glance

  • Locking and surface-mounted variant of the ASI 0473 series
  • 22-gauge Type 304 stainless steel, satin finish throughout
  • Tumbler lock restricts container access to maintenance staff
  • Self-closing door, 1.5-gallon removable waste container
  • ADA compliant installation
  • 1-year warranty from date of invoice
Mounting Surface Mounted (suffix A)
Lock Tumbler lock included (suffix 1)
Base model without suffixes Recessed, no lock
Construction 22-gauge Type 304 Stainless Steel, Satin Finish
Dimensions 11" W x 15-1/4" H x 4" D [279 x 387 x 102 mm]
Waste Capacity 1.5 gal (5.7 L) dry/solids
ADA Install Height 24" min to 34" max AFF to top of door
Warranty 1 year from date of invoice

More Info

The 0473 falls under CSI MasterFormat Section 10 28 13 (Toilet Accessories) and is suited for end-stall installation. The suffix system on the 0473 series lets specifiers choose the right configuration for each restroom. Drop the "1" for a version without a lock, drop the "A" for a recessed installation, or drop both for a recessed unit with no lock. American Specialties also offers matching feminine hygiene vendors and other restroom accessories that coordinate within the same product family.
