ASI 0600

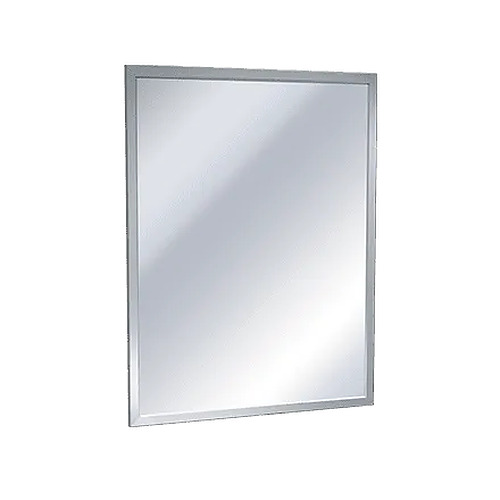

ASI 0600 Series Stainless Steel Framed Mirror, Surface Mounted

Quick Product Details

  • (This Product Requires an Additional 2 Days Shipping)
  • Heliarc welded, mitered corners polished smooth
  • Standard plate glass glazing, 15-year silver spoilage warranty
  • Glazing options available: plate glass, tempered, stainless steel, polycarbonate, acrylic, and laminated glass
  • Size selected separately as a product option
  • Tamper-proof locking screws and concealed hanging bracket
  • ADA compliant when installed per 2010 ADA Accessibility Standards
Price: $122.00 /each

SKU: 0600

Choose Options Below

(This Product Requires an Additional 2 Days Shipping) The ASI 0600 is a surface-mounted stainless steel framed mirror built for commercial restrooms, healthcare facilities, and institutional spaces. The 18-gauge Type 304 satin finish frame has heliarc welded, polished corners, and the standard plate glass mirror is warranted against silver spoilage for 15 years. Size and glazing are selected separately to match the installation.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Stock Item
  • FREE Same-Day Shipping*When ordered before 2PM ET
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $122.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Size:

18" x 36"
24" x 36" +$17.00
24" x 48" +$80.00

Choose FInish:

0 - Satin Stainless Steel
41 - Matte Black Stainless Steel +$63.00

Choose Reflective Surfaces:

0 - Plate Glass
B - Tempered Glass +$103.00

Overview

The ASI 0600 is a surface-mounted framed mirror designed for commercial and institutional restrooms. The frame is roll-formed 18-gauge Type 304 alloy 18-8 stainless steel with mitered corners that are heliarc welded and polished to a uniform satin finish. Edges and corners are burr-free. The mirror hangs on a concealed 18-gauge bracket that locks onto the top and bottom of the frame using tamper-proof set screws, with a theft-resistant locking device securing the back plate to the frame.

The standard glazing is a quarter-inch plate glass mirror, silver coated and hermetically sealed with electrolytic copper plating, meeting Federal Spec DD-M411C, ASTM C-1503, and ASTM C-1036-91. It carries a 15-year warranty against silver spoilage. Five additional glazing options are available for specific project needs: tempered glass (B), stainless steel with a No. 8 mirror finish (C), Lexan polycarbonate (D), Plexiglas acrylic (E), and laminated glass (L). Plate glass delivers the best image quality; the alternative glazings are noted as fair to better and are non-returnable for distortion claims.

For ADA compliance, the bottom edge of the reflecting surface must be no higher than 40 inches above finished floor. Mounting uses number-10 self-threading screws through the concealed hanger bracket, with a maximum spacing of 18 inches between mounting points.

Available Options: Choose Options Above

Product at A Glance

  • 18-gauge, heliarc welded corners
  • Six glazing options available, plate glass standard
  • Standard plate glass carries a 15-year silver spoilage warranty
  • Concealed hanging bracket with tamper-proof and theft-resistant locking
  • Available in a wide range of sizes, selected separately
  • ADA compliant installation

More Info

The 0600 Series falls under CSI MasterFormat Section 10 28 13 (Toilet Accessories) and qualifies for LEED credits under MR 4.1, MR 4.2, MR 6, EQ 4.1, EQ 4.2, and EQ 4.4. ASI publishes a dedicated glazing options reference document that covers image quality comparisons and material details for all six glazing types, which is worth referencing when specifying for projects where reflective quality or impact resistance is a factor.

American Specialties notes that as mirror size increases, the likelihood of distortion increases regardless of glazing type. Non-plate glass glazings are non-returnable on distortion claims, so plate glass is the recommended default for most commercial applications.
