ASI 0620

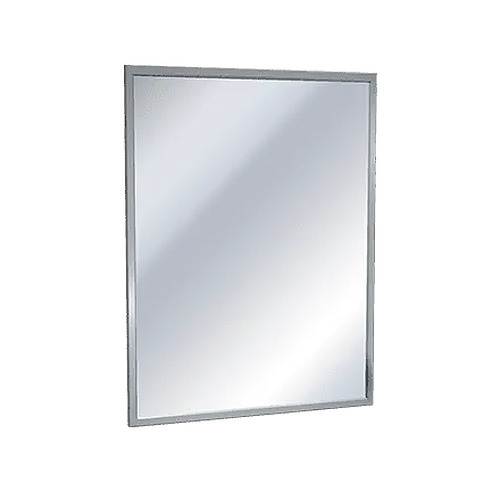

ASI 0620 Series Chan-Lok Frame Mirror, Stainless Steel

Quick Product Details

  • (This Product Requires an Additional 2 Days Shipping)
  • All mirror edges protected by friction and chafe-absorbing fillers
  • Full-size shock-absorbing, water-resistant backing with 20-gauge corrosion-protected steel backer
  • ADA compliant — bottom edge of reflecting surface at or below 40
  • One-piece roll-formed frame encases mirror and backing for a clean, tight corner profile
  • Standard glazing: No. 1 quality 1/4" (6.4 mm) plate/float glass, silver coated, hermetically sealed with electrolytic copper plating
  • Optional tempered glass glazing available on select sizes (suffix
  • Mirrors meet Federal Spec DD-M-411C and ASTM C-1036-91
  • 15-year warranty against silver spoilage
  • 1/2" x 1/2" (13 x 13 mm) 20-gauge Type 304 stainless steel Chan-Lok channel frame — satin finish, mitered corners
Price: $71.00 /each

SKU: 0620

Choose Options Below

(This Product Requires an Additional 2 Days Shipping) The ASI 0620 Series is a wall-mounted commercial mirror with a one-piece roll-formed 20-gauge Type 304 satin stainless steel Chan-Lok frame and tight mitered corners. Available in 22 standard sizes with plate glass or tempered glass glazing options. The mirror installs on two wall brackets secured by theft-resistant screws and carries a 15-year warranty against silver spoilage.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Stock Item
  • FREE Same-Day Shipping*When ordered before 2PM ET
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $71.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Length:

18" x 30"
18" x 36" +$8.00
24" x 36" +$30.00
24" x 48" +$68.00
24" x 60" +$101.00

Choose Reflective Surface:

0 - Plate Glass
B - Tempered Glass +$76.00

Overview

The ASI 0620 Series is a commercial wall-mounted mirror designed for restrooms, locker rooms, healthcare facilities, schools, and other institutional environments. The frame is fabricated from a single roll-formed piece of 1/2" x 1/2" 20-gauge Type 304 stainless steel with a satin finish and burr-free edges. The Chan-Lok construction fully encases the mirror and backing within the channel, producing tight mitered corners without exposed fasteners or visible joints.

Standard glazing is No. 1 quality 1/4" (6.4 mm) plate/float glass, silver coated and hermetically sealed with a uniform layer of electrolytic copper plating. All mirrors meet Federal Specification DD-M-411C and ASTM C-1036-91. Tempered glass is available on select sizes for environments where impact resistance is preferred; note that tempered glass carries a slightly reduced reflective trueness compared to plate glass, and reflective quality may vary as mirror size increases — ASI does not accept returns of tempered glass mirrors based on distortion claims.

All mirror edges are cushioned with friction and chafe-absorbing fillers. The back of each mirror is protected by a full-size shock-absorbing, water-resistant filler and a full-size 20-gauge corrosion-protected steel backer. Installation is via two spot-welded "H" wall brackets in 20-gauge corrosion-protected steel, with the mirror secured at the lower bracket by a Phillips pan head theft-resistant locking screw. For ADA compliance, the bottom edge of the reflecting surface should be installed no higher than 40" above finished floor per 2010 ADA Accessibility Standards and 2015 ABA Standards. Mirrors larger than 32 square feet are shipped in two or more sections to facilitate handling and installation.

Available Options: Choose Options Above

  • Length:

    • 18" x 30"
    • 18" x 36"
    • 24" x 36"
    • 24" x 48"
    • 24" x 60"
  • Reflective Surface:

    • 0 - Plate Glass
    • B - Tempered Glass

Product at A Glance

  • One-piece roll-formed Type 304 satin stainless steel frame — no exposed joints or fasteners
  • Chan-Lok construction locks mirror and backing inside the channel for a clean edge
  • Plate glass standard; tempered glass option on select sizes
  • 15-year silver spoilage warranty
  • Meets Federal Spec DD-M-411C and ASTM C-1036-91
  • ADA compliant at 40" AFF bottom edge installation
  • Theft-resistant locking screw at lower bracket
  • 22 plate glass sizes; 3 tempered glass sizes

More Info

The 0620 Series carries CSI MasterFormat section 10 28 13 (Toilet Accessories). The finish is protected during shipping and installation by an easily removed self-adhesive PVC film. Complementary restroom accessories are available through ASI's Velare and Piatto collections for coordinated installations. BIM content in Revit format is available through ASI's BIM library.
