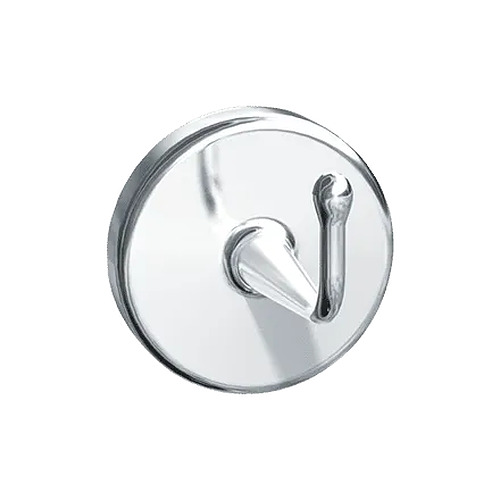

ASI Robe Hook, Heavy Duty, Surface Mounted, Concealed, Satin Chrome Plated Brass Glass Solutions

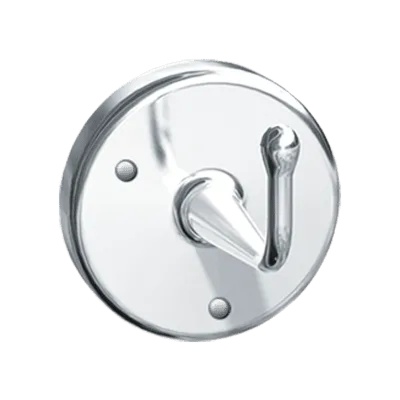

ASI Robe Hook, Heavy Duty, Surface Mounted, Concealed, Satin Chrome Plated Brass Glass Solutions image 2

ASI 0751

ASI 0751 Robe Hook, Heavy Duty, Surface Mounted, Concealed, Satin Chrome Plated Brass

Quick Product Details

Solid brass construction with satin chrome plated finish
Rated to support over 300 lbs when properly attached to building element
Fully concealed mounting, no exposed fasteners on finished face
Three 1/4-28 cone point stainless steel hex socket set screws lock hook to concealed wall bracket
2-3/4" diameter flange with 3-1/4" wall projection
ADA compliant when hook centerline is installed at 48" max AFF
Exposed mounting version available as 0751-A
1-year warranty from date of invoice

Price: $26.00 /each

SKU: 0751

Choose Options Below

(This Product Requires an Additional 2 Days Shipping) The ASI 0751 is a heavy duty surface-mounted robe hook built for applications where a standard-weight hook is not enough. Fabricated from solid brass with a satin chrome finish, it is rated to support over 300 lbs when properly attached to a suitable building element, making it one of the strongest single robe hooks in ASI's lineup. The mounting is fully concealed: a wall bracket goes up using #10 self-threading pan head screws supplied by others, and the hook body drops over it and locks in place with three 1/4-28 cone point stainless steel hex socket set screws spaced evenly around the 2-3/4 inch diameter flange. Once locked, there are no exposed fasteners on the finished face. The hook projects 3-1/4 inches from the wall, giving plenty of clearance for bulky robes, heavy bags, or layered clothing. For facilities that prefer exposed mounting, the 0751-A is the same hook with a visible fastener option.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

Stock Item
FREE Same-Day Shipping*When ordered before 2PM ET
×
Enter ZIP Code to see when you will get this item

Have a question about this product?

Price: $26.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Design:

Concealed

Exposed Subtract -($3.80)

1 Choose Design:
Qty.
Have a question? Need help?
Call Us: 1-866-749-7661

Overview

The ASI 0751 is the heavy duty option in ASI's robe hook lineup, built for installations where load capacity and a clean finished appearance both need to be taken seriously. It is fabricated from solid brass, a denser, heavier material than the Zamak used in ASI's standard chrome accessory line and finished with a satin chrome plating that gives it a refined, low-sheen look that works in upscale hotel rooms, healthcare facilities, executive restrooms, and any space where the fixtures are expected to perform and look the part over many years.

The hook is rated to support over 300 lbs when properly installed into a building element capable of bearing that load. That capacity puts it in a completely different category from standard commercial robe hooks, and it is the right specification for locations where heavy robes, multiple garments, loaded duffel bags, or medical equipment bags are likely to be hung regularly.

Mounting is fully concealed, which is the 0751's defining visual feature. A wall bracket is installed first using #10 self-threading pan head screws supplied by others, and the installer is responsible for ensuring the mounting configuration complies with local building codes and can sustain 181 lbs (82 kg) of downward force at minimum. The hook body then fits over the bracket and is locked in place with three 1/4-28 cone point stainless steel hex socket set screws tightened evenly around the perimeter of the 2-3/4 inch diameter flange using a 1/8 inch hex wrench. Once those three set screws are tightened, the hook is secure and the only thing visible from the front is the finished chrome brass flange and hook arm with no screw heads, no slots, no visible fasteners of any kind.

The hook arm projects 3-1/4 inches from the wall, which is enough clearance for thick bath robes, layered jackets, or bags with bulky handles without them pressing against the wall.

For compliance under the 2010 Accessibility Standards, the centerline of the hook should be installed at 48 inches maximum above finished floor.

Available Options: Choose Options Above

Design:
- Concealed
- Exposed

Product at A Glance

Solid brass, satin chrome plated finish
Rated to support over 300 lbs when properly attached to building element
Fully concealed mounting, clean finished appearance with no visible fasteners
Three 1/4-28 cone point stainless steel hex socket set screws lock hook to bracket
2-3/4" diameter flange, 3-1/4" wall projection
ADA compliant at hook centerline 48" max AFF
Exposed mounting version available as 0751-A
1-year warranty from date of invoice

Dimensions	2-3/4" W x 2-3/4" H x 3-1/4" Projection (70 x 70 x 84 mm)
Flange Diameter	2-3/4" (70 mm)
Mounting Type	Surface Mounted, Concealed
Construction	Heavy Duty Chrome Plated Brass, Satin Finish
Load Capacity	Over 300 lbs (136.1 kg) when properly attached
Hook Retention	Three 1/4-28 Cone Point Stainless Steel Hex Socket Set Screws
Hex Wrench Size	1/8"
Warranty	1 Year from date of invoice

More Info

The 0751 is an appropriate specification for any facility that has experienced hardware failures with standard-weight robe hooks, or that is designing for occupants who will routinely subject hooks to higher loads. Hospitals and rehabilitation facilities often need hooks that can hold heavy patient gowns, IV bags, or personal equipment. Hotels with spa amenities see heavy use from thick bathrobes and large towels. Fitness facilities and locker rooms deal with packed gym bags and wet gear. In all of these cases, a hook rated over 300 lbs provides a meaningful safety margin that a standard commercial hook does not.

The concealed mounting is also a consideration beyond just aesthetics. In environments where vandalism or tampering is a concern, a concealed bracket with three set screws tightened with a 1/8 inch hex wrench is meaningfully harder to remove than a hook held by visible Phillips head screws. That extra resistance to removal adds a layer of security in publicly accessible restrooms and changing areas.

The 0751-A is the companion exposed mounting version for situations where the mounting hardware does not need to be hidden, or where a concealed bracket installation is not practical for the wall type or construction. Both models share the same hook body, load capacity, and satin chrome brass construction.

Wall mounting screws are supplied by others and must be suitable for the specific wall conditions and capable of supporting the rated load. The installer is responsible for verifying that the mounting meets local building code requirements. The 0751 carries a 1-year limited warranty from date of invoice.
