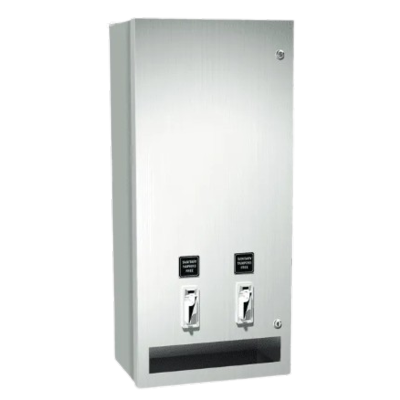

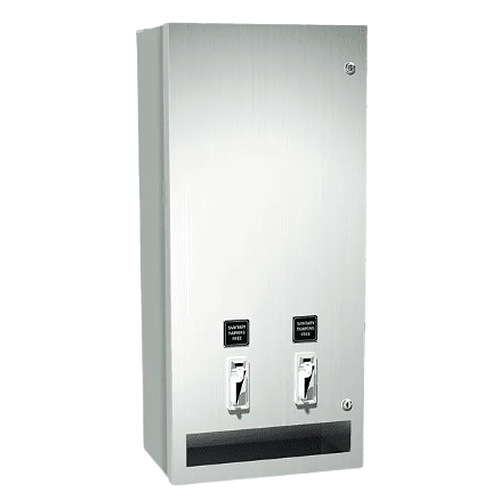

ASI Dual Napkin and Tampon Vendor, Surface Mounted Glass Solutions

ASI 0864

ASI 0864 Dual Napkin and Tampon Vendor, Surface Mounted

Quick Product Details

(This Product Requires an Additional 2 Days Shipping)
Full-length 3/16" multi-staked piano hinge keeps the door secure and aligned
Dispenses 30 feminine napkins and 27 tampons from two independent mechanisms
Choose 25 cent, 50 cent, or free operation with the appropriate model suffix
18-gauge type 304 stainless steel door, 22-gauge cabinet, satin finish
Two tumbler locks keyed alike to other ASI equipment; separate key for coin drawer
Empty indicator blocks coin slot and resets automatically on restocking
ADA compliant at correct mounting height; qualifies for LEED MR and EQ credits

Price: $501.00 /each

SKU: 0864

Choose Options Below

(This Product Requires an Additional 2 Days Shipping) he ASI 0864 is a surface-mounted dual feminine hygiene vendor that dispenses both napkins and tampons from a single compact cabinet. It holds 30 cardboard-boxed napkins and 27 cylindrical tampons in two independent dispensing mechanisms, so users can access either product without affecting the other. The universal coin mechanism supports 25 cent, 50 cent, or free operation depending on the suffix ordered, making it flexible for facilities that charge or offer product at no cost. The cabinet is 22-gauge type 304 stainless steel with a satin finish, and the door is 18-gauge type 304 stainless steel attached with a full-length 3/16 inch multi-staked piano hinge. Two tumbler locks keyed alike to other ASI washroom equipment keep the unit secure, and a separate key opens the coin drawer. An empty indicator automatically blocks the coin slot and resets when the unit is restocked.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

Stock Item
FREE Same-Day Shipping*When ordered before 2PM ET
×
Enter ZIP Code to see when you will get this item

Have a question about this product?

Price: $501.00

Choose Cost Operation:

F - Free operation

1 Choose Cost Operation:
Qty.
Have a question? Need help?
Call Us: 1-866-749-7661

Overview

The ASI 0864 is a dual-purpose feminine hygiene vendor designed for commercial women's restrooms. It combines two independent dispensing mechanisms into one surface-mounted cabinet, one side for napkins and one for tampons, so facilities can offer both products without taking up extra wall space.

The napkin side holds 30 cardboard-boxed napkins compatible with major brands including Stayfree, Kotex, Guards, Pure-Nat, and Modess. The tampon side holds 27 cylindrical cardboard tampons with crimped ends, compatible with Tampax and Modess tampon products. Both dispensing tracks use feed weights that must be in place to ensure positive product delivery. The empty indicator on each side displays when that product is depleted and blocks the coin slot until the unit is restocked. Once refilled, the indicator resets automatically.

The universal coin mechanism is what sets this model apart from single-denomination vendors. Ordering the appropriate suffix determines the vend price: the 0864-25 is set for 25 cent operation, the 0864-50 for 50 cents, and the 0864-F provides free or no-coin vending for facilities that provide products at no charge. The coin drawer uses a different key than the service door, which keeps cash access separate from restocking access.

The cabinet is constructed from 22-gauge type 304 stainless steel with an 18-8 alloy rating and a satin finish. The door is 18-gauge of the same alloy and is attached with a full-length 3/16 inch diameter multi-staked stainless steel piano hinge. Two tumbler locks hold the door closed and are keyed alike to other ASI washroom accessories for simplified facility key management.

Installation uses four #10 self-threading screws through concealed holes in the cabinet rear wall. For compliance, the coin slot should be mounted between 38 and 48 inches above finished floor. The coin slot sits 7 inches above the bottom of the cabinet, so that measurement informs the mounting height calculation.

Available Options: Choose Options Above

Cost Operation:
- F - Free operation

Product at A Glance

Two independent dispensing mechanisms, napkins and tampons in one cabinet
Universal coin mechanism: order 0864-25, 0864-50, or 0864-F for the right vend price
18-gauge type 304 stainless steel door with full-length piano hinge
Two tumbler locks keyed alike to other ASI washroom equipment
Separate keyed coin drawer for secure cash access
Auto-reset empty indicator blocks coin slot when product runs out
ADA compliant at correct mounting height; supports LEED credits
1-year warranty from date of invoice

Dimensions	11-3/4" W x 6-1/2" D x 26-1/8" H (298 x 165 x 663 mm)
Mounting Type	Surface Mounted
Coin Operation	25 cent (0864-25), 50 cent (0864-50), or Free (0864-F)
ADA Coin Slot Height	38" min to 48" max above finished floor
Warranty	1 Year from date of invoice

More Info

The ASI 0864 fits naturally into schools, healthcare facilities, offices, airports, hotels, and any other building where providing feminine hygiene products in the restroom is a priority. The dual-vendor format means facilities do not need to install two separate units or choose between offering napkins or tampons — both are covered in a single footprint.

The track weights included with the unit play an important role in reliable operation. They must be installed correctly to ensure consistent product feed. Without them in place, products may not drop properly after a coin is inserted. Maintenance staff should confirm the weights are seated correctly any time the unit is restocked.

The coin drawer is accessed using a different key than the service door, which is a practical security feature for facilities that have separate staff handling cash collection versus restroom restocking. Locks on the 0864 are keyed alike to other ASI washroom equipment by default, which simplifies key management for facilities that use multiple ASI products.

For facilities that want to match a contemporary restroom design, the 0864-41 is the same unit in a powder-coated matte black finish. For projects with insufficient wall depth for recessing, the 0864 surface-mount design installs directly on the wall with no cutout required.

On LEED-certified projects, the 0864 qualifies under recycled content credits MR 4.1 and MR 4.2, rapidly renewable materials credit MR 6, and low-emitting materials credits EQ 4.1, EQ 4.2, and EQ 4.4.

The unit carries a 1-year limited warranty from date of invoice.
