ASI 0953

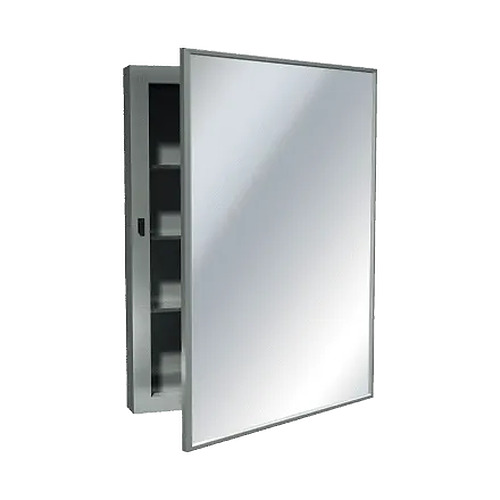

ASI 0953 Medicine Cabinet, Swing Door, Stainless Steel, Surface Mounted

Quick Product Details

  • 20-gauge Type 304 stainless steel, satin finish
  • 1/4-inch plate glass mirror with 15-year silver spoilage guarantee
  • Full-length heavy-duty stainless steel piano hinge
  • Three adjustable stainless steel shelves
  • Magnetic catch with rubber door silencers
  • ADA compliant when installed per 2010 ADA Accessibility Standards
  • 1-year warranty
Price: $507.00 /each

SKU: 0953

ASI 0953 is a surface-mounted stainless steel medicine cabinet built for commercial and healthcare restrooms. The mirrored swing door is hung on a full-length heavy-duty piano hinge, and the 1/4-inch plate glass mirror carries a 15-year guarantee against silver spoilage. Three adjustable shelves let you configure storage for different needs.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Stock Item
  • FREE Same-Day Shipping*When ordered before 2PM ET
  • ×
    Getting shipping methods...

Have a question about this product?

Overview

ASI 0953 is a swing-door mirror cabinet made from 20-gauge Type 304 stainless steel with a satin finish. It mounts directly to the wall and suits commercial restrooms, healthcare facilities, and institutional spaces where durability and easy maintenance matter. The cabinet body measures 18-1/4" wide by 24-1/4" high by 4-3/4" deep, giving enough storage for standard restroom supplies.

The mirrored door is 1/4-inch plate glass, guaranteed for 15 years against silver spoilage, and hangs on a full-length 3/16-inch stainless steel multi-staked piano hinge. A magnetic catch holds the door shut, and two rubber silencers prevent noise on closing. Inside, three stainless steel shelves adjust using pre-punched embossment slots, so shelf spacing can be reconfigured without tools.

Installation uses four number-10 pan head self-threading screws through the mounting holes in the cabinet back. For ADA compliance, the bottom edge of the mirror should be no higher than 40 inches above finished floor. The unit qualifies for LEED credits under MR 4.1, MR 4.2, MR 6, EQ 4.1, EQ 4.2, and EQ 4.4.


Product at A Glance

  • 20-gauge Type 304 stainless steel, built for commercial and healthcare use
  • 1/4-inch plate glass mirror, 15-year silver spoilage guarantee
  • Three adjustable shelves, no tools needed to reconfigure
  • Magnetic catch and rubber silencers for quiet, secure door closure
  • ADA compliant installation, LEED credit eligible
  • 1-year warranty from date of invoice
Mounting Surface Mounted
Construction 20-gauge Type 304 Stainless Steel, Satin Finish
Dimensions 18-1/4" W x 24-1/4" H x 4-3/4" D [464 x 616 x 121 mm]
Mirror 1/4" plate glass, 15-year silver spoilage guarantee
Shelves 3 adjustable stainless steel shelves
Finish Satin
Warranty 1 year from date of invoice

More Info

The 0953 falls under CSI MasterFormat Section 10 28 13 (Toilet Accessories). For general utility, ASI recommends mounting the unit 46 inches above finished floor to the bottom of the cabinet, or 12 inches above the wash basin. For ADA compliance, the bottom edge of the mirror must be 40 inches above finished floor maximum per 2010 ADA Accessibility Standards.

American Specialties offers additional medicine cabinet configurations including recessed models and units in different sizes, which can be specified alongside the 0953 for facilities coordinating across multiple restroom layouts.
