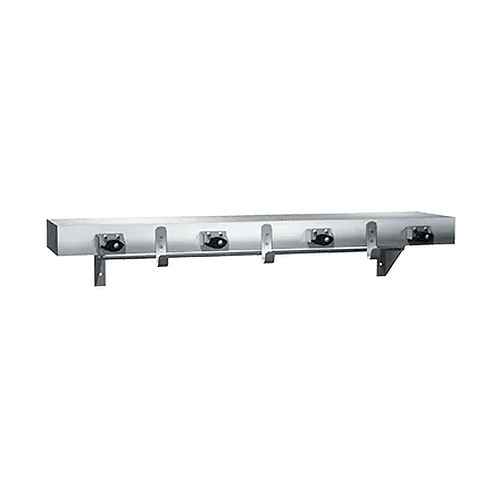

ASI 1315 Utility Hook and Mop Strip Shelf with Drying Rod, Surface Mounted

Quick Product Details

  • (This Product Requires an Additional 2 Days Shipping)
  • 18-gauge Type 304 stainless steel, satin finish
  • 36" wide with four mop holders, three rag hooks, and a stainless steel drying rod
  • Spring-loaded serrated rubber cam holders grip mop and broom handles hands-free
  • 8" deep shelf for dry custodial supplies
  • ADA compliant when installed per 2010 ADA Accessibility Standards
  • LEED credit eligible
  • 1-year warranty
Price: $172.00 /each

SKU: 1315

Choose Options Below

(This Product Requires an Additional 2 Days Shipping) The ASI 1315-4 is a three-in-one custodial shelf that combines a storage shelf, mop strip, and drying rod in a single 36-inch wall-mounted unit. Built from 18-gauge Type 304 stainless steel, it handles mops, brooms, wet rags, and dry supplies without needing multiple fixtures on the wall. A practical, durable choice for custodial closets and service areas in commercial and institutional buildings.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Stock Item
  • FREE Same-Day Shipping*When ordered before 2PM ET
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $172.00

Choose Length:

36" - 3 Hooks and 4 Holders

Overview

The ASI 1315 gives custodial staff a single wall unit to store and dry everything they need in one spot. The shelf is made from 18-gauge Type 304 stainless steel with a satin finish, with 16-gauge mounting brackets of the same material. A stainless steel drying rod are all built into the unit, eliminating the need for separate fixtures.

The mop holders use a pivoting serrated rubber cam that locks a mop or broom handle in place when pushed upward into the grip jaw. A spring holds the cam against the handle and gravity keeps it there. Wet cloths and rags hang on the three hooks or drape over the drying rod to drip-dry over a floor basin. Dry supplies store on the 8-inch deep shelf above.

For general installation, mount the unit with the top of the shelf at 72 inches above finished floor. For ADA compliance, the top of the hook must be no higher than 48 inches above finished floor. It qualifies for LEED credits under MR 4.1, MR 4.2, MR 6, EQ 4.1, EQ 4.2, and EQ 4.4.

Available Options: Choose Options Above

  • Length:

    • 36" - 3 Hooks and 4 Holders

Product at A Glance

  • Three-in-one unit with shelf, mop strip, and drying rod
  • 18-gauge Type 304 stainless steel throughout, satin finish
  • Four spring-loaded mop holders and three rag hooks
  • Drying rod for wet cloths to drip-dry over floor basin
  • ADA compliant installation, LEED credit eligible
  • 1-year warranty from date of invoice
Mounting Surface Mounted
Construction 18-gauge Type 304 Stainless Steel, Satin Finish
Drying Rod Stainless steel, included
Install Height 72" AFF to top of shelf; 48" AFF max to top of hook for ADA
Warranty 1 year from date of invoice

More Info

The 1315 falls under CSI MasterFormat Section 10 28 13 (Toilet Accessories). The drying rod is designed to be positioned over a floor basin, which is supplied and installed by others. Mounting uses number-10 pan head self-threading screws through the gusset bracket holes into suitable wall anchors or blocking, also supplied by others.
