ASI 7306

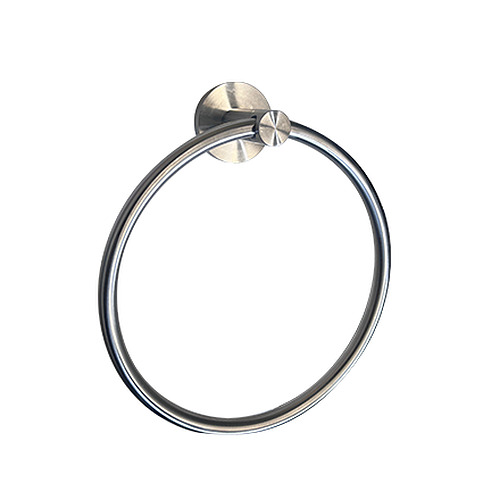

ASI 7306 Towel Ring, Surface Mounted, Satin Stainless Steel

Quick Product Details

  • (This Product Requires an Additional 2 Days Shipping)
  • 7" diameter ring formed from 3/8" diameter type 304 stainless steel tube, satin finish
  • Swings in silencer bushings for easy one-hand towel access
  • Spring tension holds ring captive in bushings when not in use
  • Locking set screw secures flange to concealed wall bracket
  • Includes #6 x 1-1/2" self-threading pan head screws and plastic wall anchors
  • ADA compliant at correct mounting height
  • Qualifies for LEED MR and EQ credit categories
  • 1-year warranty from date of invoice
Price: $37.00 /each

SKU: 7306

(This Product Requires an Additional 2 Days Shipping) The ASI 7306 is a surface-mounted towel ring designed for hand towels in commercial and hospitality restrooms. The ring is formed from a 3/8 inch diameter satin finish type 304 stainless steel tube and measures 7 inches in diameter, giving it enough room for a standard hand towel without looking oversized on the wall. It swings freely in silencer bushings so users can hang or retrieve a towel with one hand, and the ring stays held in the bushings by spring tension so it does not flop loose. A locking set screw secures the ring flange to the wall bracket, and the two-screw bracket installation uses the included #6 self-threading pan head screws with plastic wall anchors. Compact at 2-1/2 inches off the wall, ADA compliant at the correct mounting height, and built to coordinate with other ASI type 304 satin stainless accessories.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Stock Item
  • FREE Same-Day Shipping*When ordered before 2PM ET
  • ×
    Getting shipping methods...

Have a question about this product?

Overview

The ASI 7306 is a clean, simple towel ring for commercial restrooms, hotel bathrooms, and any space that needs a dedicated hand towel hang point without a full towel bar taking up wall space. The ring is formed from a 3/8 inch diameter satin finish type 304 stainless steel tube bent into a 7 inch diameter circle — large enough for a folded hand towel but proportioned to stay compact on the wall.

The ring swings freely in its silencer bushings, which allows users to pick up or hang a towel with one hand without fighting a stiff or sticky ring. The bushings also quiet the motion, so the ring does not clang when it swings back. A spring inside the assembly holds the ring captive in the bushings so it stays in position when not in use rather than dangling or flopping.

The post is 22-gauge and the wall bracket is 18-gauge, both type 304 stainless steel with a satin finish. The ring flange clips onto the wall bracket and is locked in position with a set screw, keeping the face of the installation clean with no visible fasteners. The bracket itself mounts to the wall with two included #6 x 1-1/2 inch self-threading pan head screws and plastic wall anchors. For wall conditions that require different hardware, other suitable mounting hardware can be substituted by others.

Standards and Compliance: 2010 ADA Accessibility Standards, LEED MR 4.1, MR 4.2, MR 6, EQ 4.1, EQ 4.2, EQ 4.4

Product at A Glance

  • 7" diameter ring, 3/8" diameter type 304 stainless steel tube, satin finish
  • Swing-action ring in silencer bushings for easy one-hand use
  • Spring tension holds ring in place when not in use
  • Locking set screw, no visible fasteners on finished face
  • All mounting hardware included
  • ADA compliant at correct mounting height
  • Supports LEED MR and EQ credit categories
  • 1-year warranty from date of invoice
Dimensions 1-15/16" dia. flange x 7" dia. ring x 2-1/2" projection (49 x 178 x 64 mm)
Mounting Type Surface Mounted
Construction Type 304 Stainless Steel, Satin Finish
Post Gauge 22-gauge
Bracket Gauge 18-gauge
Ring Tube Diameter 3/8" (9 mm)
Warranty 1 Year from date of invoice

More Info

The 7306 fits naturally alongside other accessories in ASI's type 304 satin stainless specialty line, including the 7307-18 and 7307-24 round towel bars, the 7308 single robe hook, and the 7312 double robe hook. Specifying across the 73xx series ensures a consistent satin stainless tube profile and finish tone throughout the restroom.

For LEED-certified projects, the 7306 qualifies under recycled content credits MR 4.1 and MR 4.2, rapidly renewable materials credit MR 6, and low-emitting materials credits EQ 4.1, EQ 4.2, and EQ 4.4. Mounting hardware for conditions other than standard wall or door installations is supplied by others.

The 7306 carries a 1-year limited warranty from date of invoice.
