ASI Single Robe Hook, Surface Mounted, Satin Stainless Steel Div 10 - Cabinets, Mirror, Soap Dispenser, Hand Dryer, Waste, and Specialties

ASI 7308

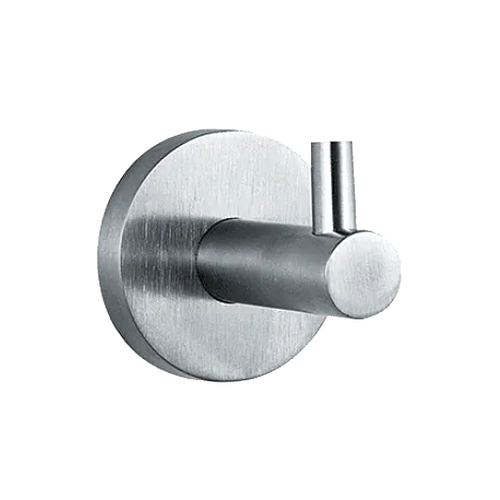

ASI 7308 Single Robe Hook, Surface Mounted, Satin Stainless Steel

Quick Product Details

(This Product Requires an Additional 2 Days Shipping)
Double hook version available as 7312
1-year warranty from date of invoice
Single hook in type 304 stainless steel, satin finish
2-5/16" wall projection, suitable for robes, clothing, and small bags
M5 cone point set screw locks flange to mounting cup, 2.5mm hex key included
Two #6 x 1-1/2" self-threading pan head screws and plastic wall anchors included
Mounts on wall or door back
ADA compliant at correct mounting height
Qualifies for LEED MR and EQ credit categories

Price: $28.00 /each

SKU: 7308

(This Product Requires an Additional 2 Days Shipping) The ASI 7308 is a single surface-mounted robe hook in satin finish type 304 stainless steel, built for commercial restrooms, locker rooms, hotel bathrooms, and changing areas. It extends 2-5/16 inches from the wall, giving enough clearance for a robe, a set of clothing, or a small carry bag. The hook mounts to a concealed 19-gauge stainless steel mounting cup using a single M5 cone point set screw tightened with the included 2.5mm hex key. The cup itself goes up with two #6 x 1-1/2 inch self-threading pan head screws and included plastic wall anchors, and works on both wall and door back installations. No visible fasteners on the finished face. ADA compliant at the correct mounting height and qualifies for LEED MR and EQ credits. The 7312 double hook is available when two hang points are needed at the same location.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

Qty.

Have a question? Need help?
Call Us: 1-866-749-7661

Stock Item
FREE Same-Day Shipping*When ordered before 2PM ET
×
Enter ZIP Code to see when you will get this item

Have a question about this product?

Overview

The ASI 7308 is a single surface-mounted robe hook designed for any commercial space that needs a reliable, low-profile hang point. It is part of ASI's type 304 satin stainless specialty accessory series and shares the same round mounting cup system and tube profile used across the 73xx accessory line, making it easy to specify alongside other accessories in the series for a consistent finished look.

The hook body is 22-gauge type 304 stainless steel in a satin finish. It extends 2-5/16 inches from the wall, which is enough clearance for a folded bath robe, a layered set of clothing, or a small carry bag without the items pressing against the wall or partition behind. The hook works on standard finished walls as well as door backs, which gives it flexibility in layouts where wall space near a changing area is limited.

Installation uses a concealed 19-gauge stainless steel mounting cup that mounts to the substrate first with two included #6 x 1-1/2 inch self-threading pan head screws and plastic wall anchors. The hook flange then clips onto the cup and is locked in position with a single M5 cone point set screw tightened using the 2.5mm hex key included with the unit. The set screw position keeps it out of the sightline from the front, resulting in a clean finished face with no visible fasteners.

For compliance under the 2010 Accessibility Standards, the top of the hook should be installed at 48 inches maximum above finished floor when clear floor reach is available. For general utility, ASI recommends the centerline of the mounting cup at 68 inches above finished floor.

Standards and Compliance: 2010 Accessibility Standards, LEED MR 4.1, MR 4.2, MR 6, EQ 4.1, EQ 4.2, EQ 4.4

Product at A Glance

Single hook, type 304 stainless steel, satin finish
2-5/16" projection, fits robes, clothing, and small bags
Concealed round mounting cup, no visible fasteners on finished face
M5 cone point set screw with 2.5mm hex key included
All mounting hardware included
Works on wall or door back
ADA compliant at correct mounting height
Qualifies for LEED MR and EQ credit categories
Double hook version available as 7312
1-year warranty from date of invoice

Dimensions	1-15/16" W x 1-15/16" H x 2-5/16" projection (49 x 49 x 59 mm)
Mounting Type	Surface Mounted, Wall or Door Back
Construction	Type 304 Stainless Steel, Satin Finish
Post Gauge	22-gauge
Mounting Cup Gauge	19-gauge
Mounting Cup Diameter	2" (51 mm)
Set Screw	M5 Cone Point, 2.5mm Hex Key Included
Warranty	1 Year from date of invoice

More Info

The 7308 works in any commercial or hospitality setting where a single, clean-looking hang point is needed without a large hardware footprint. Hotel guest bathrooms, spa changing rooms, gym locker rooms, office restrooms, and accessible changing areas are all common applications. At just under 2 inches in its overall face dimensions, it sits quietly on the wall without drawing attention, which is the right design posture for a restroom accessory.

The 7308 coordinates directly with the 7306 towel ring, 7307-18 and 7307-24 round towel bars, and 7312 double robe hook. Specifying across the 73xx series gives a restroom a consistent satin stainless tube-style accessory package that reads as intentional and cohesive rather than assembled from different sources.

For LEED-certified projects, the 7308 qualifies under recycled content credits MR 4.1 and MR 4.2, rapidly renewable materials credit MR 6, and low-emitting materials credits EQ 4.1, EQ 4.2, and EQ 4.4. Mounting hardware for non-standard wall conditions is supplied by others.

The 7308 carries a 1-year limited warranty from date of invoice.
