ASI 8340

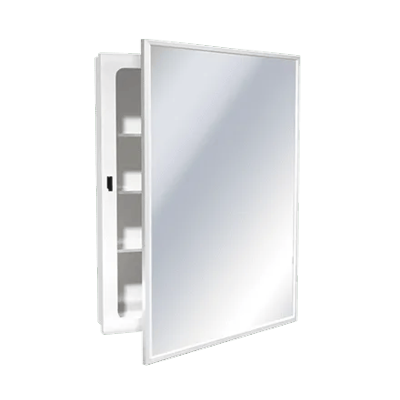

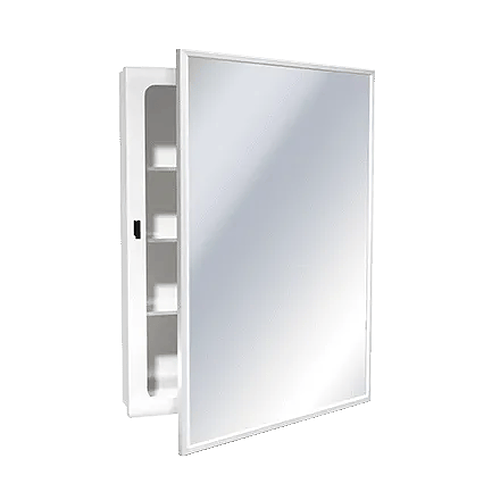

ASI 8340 Medicine Cabinet, Recessed, Enameled Steel

Quick Product Details

  • (This Product Requires an Additional 2 Days Shipping)
  • Stainless steel channel-framed mirrored door, 1/4-inch plate glass
  • Continuous piano hinge and magnetic catch
  • Three removable white enamel shelves, five adjustable track positions
  • Recessed installation for a flush wall profile
  • ADA compliant when installed per 2010 ADA Accessibility Standards
  • Cold rolled steel with white baked enamel finish
  • 1-year warranty
Price: $133.00 /each

SKU: 8340

(This Product Requires an Additional 2 Days Shipping) The ASI 8340 is a recessed medicine cabinet made from cold rolled steel with a white baked enamel finish. The stainless steel channel-framed mirrored door uses a continuous piano hinge and magnetic catch, and three removable white enamel shelves adjust across five tracks inside the cabinet. A clean, practical choice for bathrooms and shower areas where a flush-wall installation is preferred.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Stock Item
  • FREE Same-Day Shipping*When ordered before 2PM ET
  • ×
    Getting shipping methods...

Have a question about this product?

Overview


The ASI 8340 is a recessed medicine cabinet sized at 18-1/4" wide by 24-1/4" high by 4-7/8" deep. It is built from one-piece drawn cold rolled steel with a neutral white baked enamel finish, and fits into a rough wall opening of 16" wide by 22-3/4" high by 3-1/2" deep minimum. The recessed design keeps the cabinet face flush with the wall, making it a good fit for bathrooms, shower areas, and anywhere a surface-mounted cabinet would intrude on the space.

The mirrored door is framed in stainless steel channel with a 1/4-inch thick plate glass mirror, hung on a continuous painted steel piano hinge. A magnetic catch holds the door closed. Inside, three removable white baked enamel shelves sit in five embossed tracks on each side of the cabinet, so shelf positions can be reconfigured by hand without tools.

Installation uses four number-10 pan head self-threading screws through concealed mounting holes in the cabinet sides. For ADA compliance, the bottom edge of the mirror must be no higher than 40 inches above finished floor.


Product at A Glance

  • Recessed installation, flush wall profile
  • One-piece cold rolled steel with white baked enamel finish
  • 1/4-inch plate glass mirror in stainless steel channel frame
  • Three removable shelves across five adjustable track positions
  • ADA compliant installation
  • 1-year warranty from date of invoice
Mounting Recessed
Construction Cold Rolled Steel, White Baked Enamel Finish
Cabinet Dimensions 18-1/4" W x 24-1/4" H x 4-7/8" D [465 x 615 x 120 mm]
Rough Wall Opening 16" W x 22-3/4" H x 3-1/2" D [406 x 578 x 89 mm]
Mirror 1/4" plate glass, stainless steel channel frame
Shelves 3 removable, 5 adjustable track positions
WarrantyWarranty 1 year from date of invoice

More Info

The 8340 is one of several ASI medicine cabinet configurations available in recessed and surface-mounted options. For facilities specifying across multiple restrooms, ASI also offers stainless steel models such as the 0953 for areas where corrosion resistance or a commercial-grade finish is a priority. Both models share the same CSI section and install height guidelines, making cross-specification straightforward.
