ASI 9013-9

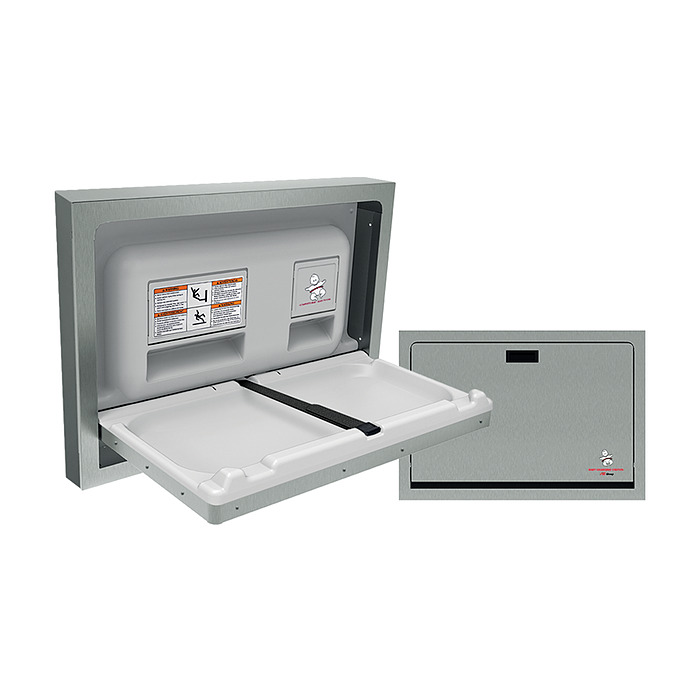

ASI 9013-9 Baby Changing Station, Heavy-Duty Stainless Steel, Surface Mounted

Quick Product Details

  • (This Product Requires an Additional 2 Days Shipping)
  • 16-gauge Type 304 stainless steel door and 18-gauge cabinet, satin finish
  • High-impact plastic changing surface, easy to clean
  • One-handed operation at less than 5 lbs of force, ADA compliant
  • Supports infants up to 50 lbs, tested to 300 lbs static load
  • Two-part vinyl-coated safety strap with Sure-Lock cam buckle
  • Includes bed liner dispenser, two bag hooks, and C-fold/multi-fold towel dispenser
  • 5-year warranty
Price: $2,531.00 /each

SKU: 9013-9

(This Product Requires an Additional 2 Days Shipping) The ASI 9013-9 is a heavy-duty, surface-mounted baby changing station built for demanding commercial environments. The door and cabinet are welded Type 304 stainless steel in a satin finish, with a high-impact plastic changing bed for easy cleaning. A two-part vinyl-coated safety strap, pull handle with concealed damped gas spring, and built-in liner/towel dispenser make it a complete, ADA-compliant solution for any public restroom.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Stock Item
  • FREE Same-Day Shipping*When ordered before 2PM ET
  • ×
    Getting shipping methods...

Have a question about this product?

Overview


The ASI 9013-9 Roval is a wall-mounted baby changing station built from Type 304 stainless steel, designed for commercial restrooms in airports, schools, healthcare facilities, and other high-traffic public spaces. The 16-gauge door and 18-gauge cabinet resist dents and corrosion, and the satin finish keeps a professional appearance over time. At 4-3/8 inches deep when closed, it fits standard wall bays without taking up floor space.

The unit opens and closes with one hand using less than 5 lbs of force, assisted by a damped gas spring for smooth, controlled movement. The high-impact plastic bed is contoured to cradle a child and includes a two-part vinyl-coated safety strap with a cam buckle that adjusts without tools. A built-in dispenser supports bed liners and converts between C-fold and multi-fold towels with no adapters needed.

The 9013-9 meets ADA, ASTM F-2285, ASTM F-2388, G-21, G-22, ANSI Z535, ANSI 117.1, EN 1222-1, and EN 1221-2 (including A1:2013) requirements. It also qualifies for LEED credits under MR 4.1, MR 4.2, MR 6, EQ 4.1, EQ 4.2, and EQ 4.4.


Product at A Glance

  • Type 304 stainless steel construction built for heavy commercial use
  • One-handed operation with a damped gas spring, no pinching or twisting required
  • Tested to 300 lbs static load, supports infants up to 50 lbs
  • Converts between bed liner and towel dispensing with no adapters
  • ADA, ASTM, ANSI, and EN compliant
  • 5-year warranty from date of invoice

More Info

The 9013-9 falls under CSI MasterFormat Section 10 28 13 (Toilet Accessories), making it straightforward to specify on commercial and institutional projects. Install height is 32" to 32-3/8" above finished floor per 2010 ADA Accessibility Standards. Mounting hardware covers wood studs, hollow metal walls, and wood stud walls using the included TOGGLER BCS toggle bolts. Masonry anchors are not included.

American Specialties offers the 9013-9 alongside a broader range of Roval baby changing stations in different configurations, including recessed and vertical models, for facilities that need to coordinate across multiple restroom layouts.
