ASI 9014

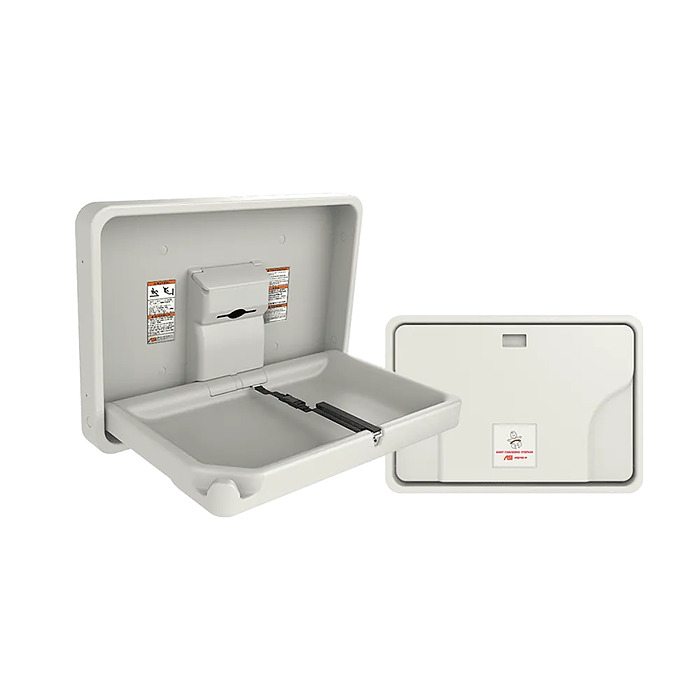

ASI 9014 Baby Changing Station, Horizontal – Plastic, Surface Mounted

Quick Product Details

  • (This Product Requires an Additional 2 Days Shipping)
  • Surface mounted with concealed wall hardware; ADA mounting height 30-1/4
  • Fabricated from FDA-approved, fungus- and bacteria-resistant solid polyethylene — light grey finish
  • Concave platform shaped to cradle a child's body and prevent rolling
  • Tested to 300 lbs (136 kg) static load per ASTM F2285-04 and EN 12221-1
  • ADA compliant — operable with less than 5 lbs (22.2 N) of force; no pinching, grasping, or wrist twisting required
  • One-handed operation via pull handle and concealed damped gas spring
  • Two-part vinyl-coated adjustable safety strap with Sure-Lock latch; adult-release only
  • Built-in bed liner/towel dispenser with sanitary lid; easy staff restocking
  • Intended for infants up to 3.5 years old and 50 lbs (23 kg)
Price: $385.00 /each

SKU: 9014

(This Product Requires an Additional 2 Days Shipping) The ASI 9014 is a horizontal, surface-mounted baby changing station built from FDA-approved, fungus- and bacteria-resistant polyethylene in a light grey finish. A concave platform cradles a child's body and prevents rolling, while a pull handle with concealed damped gas spring makes one-handed operation smooth and controlled. The dispenser lid, Sure-Lock safety strap, and compliant operable-parts design make it a practical ADA-ready option for commercial restrooms.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Stock Item
  • FREE Same-Day Shipping*When ordered before 2PM ET
  • ×
    Getting shipping methods...

Have a question about this product?

Overview

The ASI 9014 is a horizontal surface-mounted baby changing station for commercial restrooms in retail, hospitality, healthcare, and education settings. It mounts to any finished wall with concealed hardware and closes to just 3-7/8" deep, keeping the wall clear when the unit is not in use.

The body is solid FDA-approved polyethylene in light grey. The material is non-porous, fungus-resistant, and bacteria-resistant, making it easy to wipe down between uses. The concave bed is shaped to cradle a child and prevent rolling, with multi-lingual operating instructions printed directly on the face. The dispenser lid keeps stored liners or towels sanitary and makes restocking straightforward for facility staff.

Opening and closing is handled one-handed via a pull handle and concealed damped gas spring. The unit requires less than 5 lbs (22.2 N) of force and no pinching, gripping, or wrist twisting, meeting ADA accessibility standards for operable parts. For full ADA compliance, the unit mounts with the top edge of the changing surface at 30-1/4" above finished floor. The two-part vinyl-coated safety strap adjusts for child size and latches with a Sure-Lock mechanism that resists opening until an adult applies opposing finger pressure.

The 9014 has been tested to a 300 lb (136 kg) static load per ASTM F2285-04 and EN 12221-1. All wall mounting hardware ships in the box. BIM content and a downloadable MasterSpec specification are available from ASI's website for architects and specifiers.

Product at A Glance

  • Folds to 3-7/8" deep when closed — minimal wall footprint
  • Non-porous polyethylene wipes clean quickly in high-traffic restrooms
  • Concave bed shape keeps child from rolling during use
  • Damped gas spring controls open and close smoothly, one-handed
  • ADA compliant for operable parts and mounting height
  • Sure-Lock strap latch requires deliberate adult pressure to release
  • Sanitary dispenser lid protects liners and simplifies restocking
  • All mounting hardware included; concealed installation

More Info

The 9014 is part of ASI's horizontal plastic surface-mounted baby changing station family. The 9014-41 is the same unit in matte black for darker restroom palettes. For stainless steel construction, the 9013-9 is the surface-mounted alternative. For a recessed install or a vertical format, the 9012 and 9015 are the respective options.

LEED credit documentation and a downloadable MasterSpec spec are available through ASI. Complementary restroom accessories, including soap dispensers and paper towel dispensers, are available through ASI's Velare and Piatto collections.
