ASI 9018

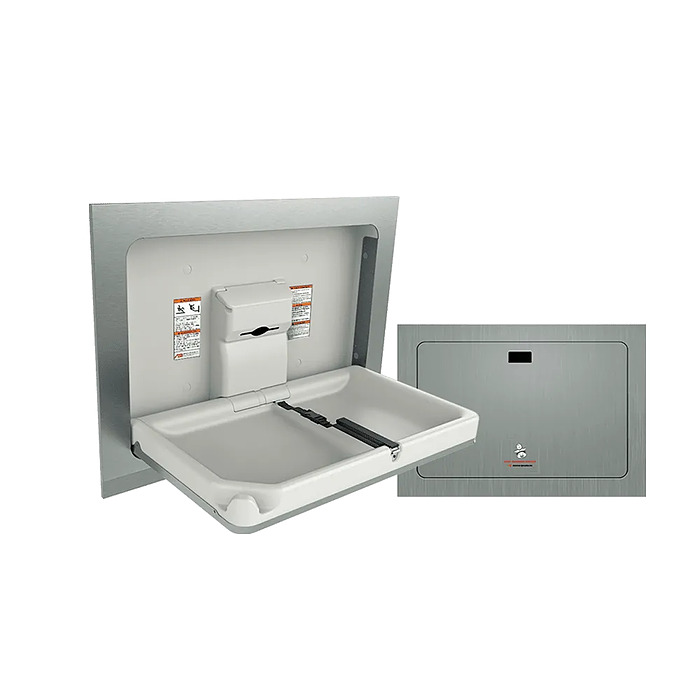

ASI 9018 Baby Changing Station, Horizontal Stainless Steel, Recessed

Quick Product Details

  • (This Product Requires an Additional 2 Days Shipping)
  • Two-part vinyl-coated adjustable safety strap with Sure-Lock latch
  • Bed liner dispenser converts to multi-fold towel dispenser - no adapters needed
  • One integral heavy-duty bag hook
  • Protrudes just 3/8" from finished wall when closed
  • Intended for infants up to 3.5 years old / 50 lbs (23 kg)
  • 18-gauge Type 304 stainless steel door facing and wall flange; satin finish
  • FDA-approved HDPE changing bed; non-porous, fungus and bacteria resistant
  • Tested to 300 lbs (136 kg) static load; tested in excess of 350 lbs (159 kg)
  • ADA compliant - 2010 ADA Accessibility Standards; less than 5 lbs force to operate
  • One-handed open/close via damped gas spring; no pinching or wrist twisting
Price: $1,537.00 /each

SKU: 9018

Choose Options Below

(This Product Requires an Additional 2 Days Shipping) The ASI 9018 is a horizontal recessed baby changing station with an 18-gauge Type 304 stainless steel door facing and wall flange in a satin finish. The changing bed is FDA-approved HDPE — non-porous, bacteria-resistant, and easy to wipe down. It recesses nearly flush to the wall when closed and opens one-handed via a damped gas spring, making it a clean, low-profile choice for upscale commercial restrooms

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Stock Item
  • FREE Same-Day Shipping*When ordered before 2PM ET
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $1,537.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Mounting Type:

Recessed
Surface Mounted + $316.00 Surface Mounted +$316.00

Choose Finish Options:

Stainless Steel Stainless Steel
Matte-Black + $516.00 Matte-Black +$516.00

Overview

The ASI 9018 is a horizontal recessed baby changing station designed for commercial restrooms where a clean wall profile matters. When closed, the unit protrudes just 3/8" from the finished wall surface virtually flush, making it ideal for tighter restroom layouts or higher-end facilities that don't want hardware projecting into foot traffic zones.

The door facing and wall flange are fabricated from 18-gauge Type 304 stainless steel with a satin finish. The changing bed itself is FDA-approved HDPE non-porous, bacteria-resistant, and fungus-resistant with a concave profile to cradle a child's body and reduce rolling. Operating instructions and graphics are printed in four languages directly on the interior. The bed liner dispenser can be converted to a multi-fold towel dispenser without any adapters, and one integral heavy-duty bag hook is included.

The unit opens and closes one-handed using a damped gas spring. No parts of the operating mechanism are accessible when the unit is open or closed. It requires less than 5 lbs of force to operate and meets 2010 ADA Accessibility Standards. Install with the top of the changing surface at 30-1/4" AFF for full ADA compliance. The required rough wall opening is 35-1/2" wide x 24-1/2" high with a minimum 4" depth from the finished wall face.

The 9018 has been tested to a 300 lb (136 kg) static load per ASTM F2285-04 and EN 12221-1, with testing in excess of 350 lbs (159 kg). Unit weight is 26 lbs (11.8 kg). BIM content and a downloadable MasterSpec specification are available for architects and specifiers through ASI's website.

Available Options: Choose Options Above

Product at A Glance

  • Recesses to just 3/8" from the finished wall, the slimmest profile in the ASI horizontal line
  • 18-gauge Type 304 stainless steel facing and flange; satin finish holds up in wet environments
  • HDPE bed wipes clean quickly; resists bacteria, fungus, and moisture absorption
  • Damped gas spring keeps the door controlled in both directions
  • No operating mechanism exposed when open or closed
  • Dispenser converts between bed liners and multi-fold towels without adapters
  • Tested to 300 lbs static load; excess tested beyond 350 lbs
  • 5-year manufacturer warranty

More Info


The 9018 carries a 5-year manufacturer warranty and is made in the USA. The surface-mounted version of this unit is the 9018-9, which uses the same stainless facing and HDPE bed but mounts to the finished wall without any wall pocket. A matte black powder-coat version of the recessed unit is available as the 9018-41, and a matte black surface-mounted option is the 9018-9-41 useful for restroom projects specifying a dark finish throughout.

LEED credit documentation, BIM content in Revit format, and a downloadable MasterSpec specification are all available through ASI's website. Complementary restroom accessories are available through the Velare and Piatto collections for coordinated installations.
