Best 45H7AB15J-626

Special order item with 4 week lead time.

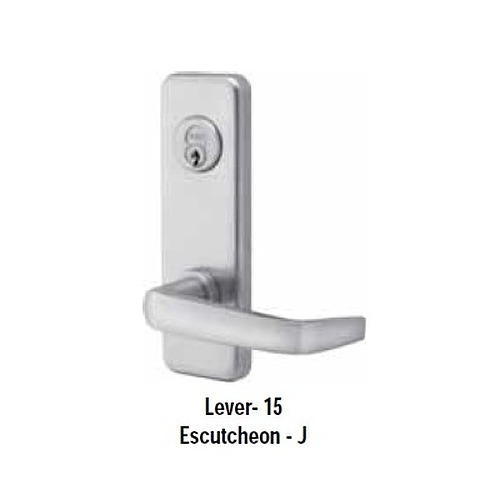

• Complete office function with deadbolt mortise lock.
• Includes lock body, 7 pin IC core housing, "J" style escutcheon, #15 style lever, armored front and strike.
• Core not included.
• Office function with deadbolt, locked/unlocked by toggle or projecting dead-bolt by key or turn lever.
• Unlocked by turning key in outside cylinder and placing locking toggle in unlocked position
• Inside lever retracts deadbolt and latch simultaneously.
• Complies with ADA- American Disability Act.
• For 1-3/4" thick door.
• Backset, 2 3/4”.
• Locks ship right hand and are field changeable.

Available Options: Choose Options Above

• Finish:

  • 626 Satin Chrome

• Handing:

  Handing

  ×





  Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.




  When you are standing outside of the room facing the door and the hinges are on your left side:

  • If the door swings away from you it is Left Handed
  • If the door swings towards you it is Left Hand Reversed


  When you are standing outside of the room facing the door and the hinges are on your right side:

  • If the door swings away from you, it is Right Handed
  • If the door swings towards you, it is Right Hand Reversed

  Close
  • Left Hand Reverse (LHR)
  • Right Hand Reverse (RHR)
  • Left Hand (LH)
  • Right Hand (RH)

• IC Core:

  IC Core

  ×

  • The Best Uncombinated IC core 1C7A1 must be keyed by a locksmith. No keys, keyblanks or control keys are included.

  Close
  • Best 1C7A1-7pin Uncombinated IC core with "A" keyway ready to be keyed
  • No IC Core Needed
