Best 45H7G4S-626

Special Order Communicating Function Complete Mortise Lock with Knob and Rose

Quick Product Details

  • Mortise Lock
  • Communicating Function
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 45H7G4S-626

Choose Options Below

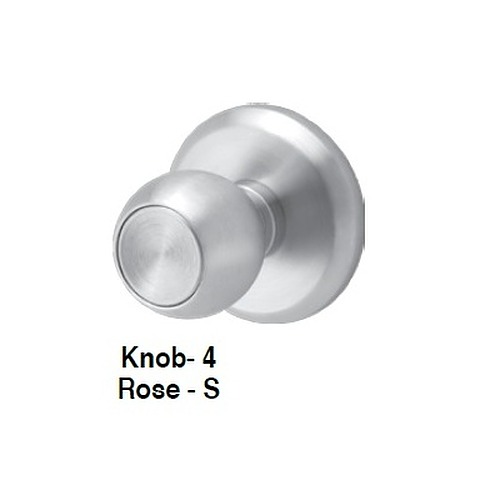

This Best Access Systems 45H7G4S-626 complete mortise lock with round knob and rose operates with the Communicating function. The 40H series is listed by Underwriters Laboratories (UL) for use on 3 hour A label fire doors. It is supplied with the S style rose that has a 3-1/2" diameter.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

626 Satin Chrome 626 Satin Chrome

Choose IC Core:

Best 1C7A1-7pin Uncombinated IC core with Best 1C7A1-7pin Uncombinated IC core with "A" keyway ready to be keyed +$29.00
No IC Core Needed

Help Me Decide

  • The Best Uncombinated IC core 1C7A1 must be keyed by a locksmith. No keys, keyblanks or control keys are included.

Choose Handing:

Need Help Deciding? QH chevron down
Left Hand Reverse (LHR)
Right Hand Reverse (RHR)
Left Hand (LH)
Right Hand (RH)

Help Me Decide



Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.


When you are standing outside of the room facing the door and the hinges are on your left side:

  • If the door swings away from you it is Left Handed
  • If the door swings towards you it is Left Hand Reversed


When you are standing outside of the room facing the door and the hinges are on your right side:

  • If the door swings away from you, it is Right Handed
  • If the door swings towards you, it is Right Hand Reversed

Overview


Special order non stock item with 8 week lead time
  • Communicating function requires 2 cylinders. IC cores not included.
  • The 40H series is listed by Underwriters Laboratories for use on a 3 hour A label doors
  • ANSI A156.13, Series 1000, Grade 1 operation and strength, Grade 2 security

Available Options: Choose Options Above

  • Finish:

  • IC Core: info icon

    • Best 1C7A1-7pin Uncombinated IC core with "A" keyway ready to be keyed
    • No IC Core Needed
  • Handing: info icon

    • Left Hand Reverse (LHR)
    • Right Hand Reverse (RHR)
    • Left Hand (LH)
    • Right Hand (RH)

Product at A Glance

  • Includes lock body, 7 pin IC core housing, door knob,rose and armored front and strike (Core not included).
Style Mortise lock
Function Communicating Function:
Locked/unlocked by turning key in inside or outside cylinder
Backset 2-3/4"
Handing Shipped right handed - field reversible
Door Thickness 1-3/4"
Strike - Standard strike 4-7/8" x 1-1/4" x 3/32" with 1-1/4" curved lip to center strike
- non-handed
Faceplate 8" H x 1-1/4" W
Body Size 5-7/8" H x 7/8" D x 4-1/16" W
Rose S Style rose with 3-1/2" diameter

More Info


This Communicating function mortise lock can only be locked and unlocked by turning key in inside or outside cylinder. Latch operated from either side only when the deadbolt is retracted. It is supplied with a standard curved lip strike, a faceplate, knob and rose. It is necessary to order 2 keyed cylinders for use on the both sides of the door.
