Best 45H7R3H-626

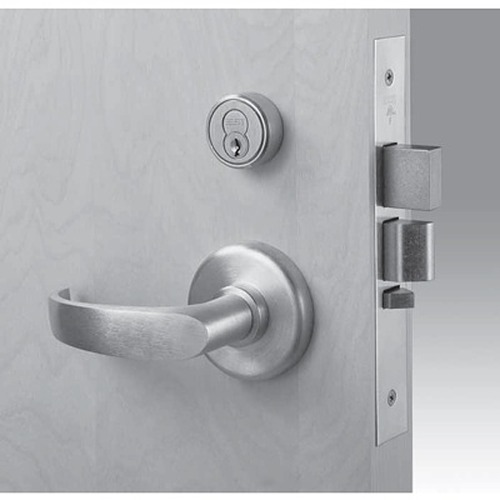

Special order Classroom Function Complete Mortise Lock with Lever and Rose

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 45H7R3H-626

Choose Options Below

Mortise locks are one of the strongest and longest lasting locks available.The Best Lock 45H7RH classroom function mortise lock is an ideal security solution for commercial and industrial applications, schools, universities, government institutions, hospitals, and other locations where strength and durability are required in a locking system. Quick Rekeying - Best interchangeable core allows for customized masterkeying and quick keying changes. Best Access Systems is now part of Stanley Security Solutions.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

Satin Chrome - 626 Satin Chrome - 626

Choose IC Core:

Best 1C7A1-7pin Uncombinated IC core with Best 1C7A1-7pin Uncombinated IC core with "A" keyway ready to be keyed +$26.00
No IC Core Needed

Help Me Decide

  • The Best Uncombinated IC core 1C7A1 must be keyed by a locksmith. No keys, keyblanks or control keys are included.

Overview

Special order item with 4 week lead time.
  • Complete Classroom function mortise lock with #3 style lever.
  • Includes lock body, 7 pin IC core housing, roses, levers, armored front and strike.
  • Core not included.
  • Classroom function-Key outside or inside locks/unlocks outside lever
  • Lever inside is always unlocked.
  • Complies with ADA- American Disability Act.
  • For 1-3/4" thick door.
  • Backset, 2 3/4”.
  • Locks ship right hand and are field changeable.

Available Options: Choose Options Above

  • Finish:

  • IC Core: info icon

    • Best 1C7A1-7pin Uncombinated IC core with "A" keyway ready to be keyed
    • No IC Core Needed

More Info

  • The 40H series is listed by Underwriters Laboratories for use on a 3 hour A label doors.
  • ANSI A156.13, Series 1000, grade 1 operation and Strength, grade 2 security.
  • Standard strike: 4-7/8” x 1-1/4” x 3/32”, non-handed, curved lip, 1-1/4” lip to center strike.
  • Faceplate 8” H x 1 1/4” W.
  • Body size, 5-7/8” H x 7/8” D x 4-1/16” W.
  • H style rose has a 2-3/4" diameter.
