Best 7KC27RDS3-626

Special Order Standard Duty Interchangeable Core Classroom Lever

Quick Product Details

  • Interchangeable Core Lever
  • Standard Duty
  • Classroom Function
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 7KC27RDS3-626

Choose Options Below

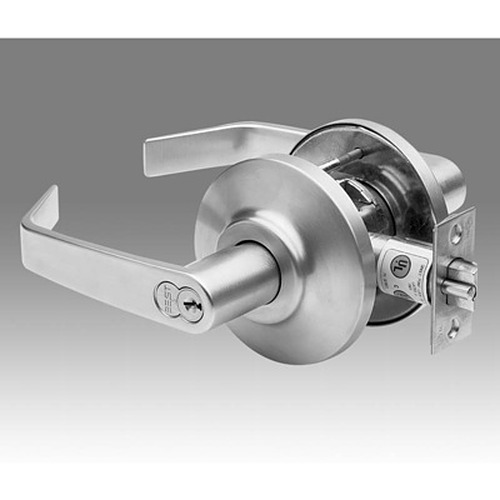

This Best 7KC27DDS3 is a Grade 2 ANSI A156.3 compliant, standard duty, UL listed cylindrical lever. This lock accepts Best 7 pin interchangeable cores (not included). The inside rose is snap on with no exposed screws. This lock is supplied with a 2-3/8" backset deadlatch

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose IC Core:

1C7A1-7 pin Best Uncombinated IC core with 1C7A1-7 pin Best Uncombinated IC core with "A" keyway-ready to be keyed +$29.00
100CR/Contrl Ky-Keyed Arrow 6 Pin Small Format (Best type) Interchangeable Core + $34.00 100CR/Contrl Ky-Keyed Arrow 6 Pin Small Format (Best type) Interchangeable Core +$34.00
No IC Core Needed

Help Me Decide

  • The Best Uncombinated 7 pin IC core 1C7A1-7 must be keyed by a locksmith. No keys, key blanks or control keys are included.
  • Arrow brand Small Format Keyed 6 pin IC core, is keyed different with 2 keys and includes a control key which is required to install and remove IC core.


Choose Lever Style:

14 Curved Return 14 Curved Return
15 Contour Angle Return 15 Contour Angle Return
16 Curved 16 Curved

Overview

Special order non stock item with 4 week lead time
Quality and safety:
  • ADA compliant
  • UL Listed for 3-hour A label single swinging (4' x 8' )fire doors
  • Listed ANSI A156.3, Grade 2
  • 2-3/8" backset

Available Options: Choose Options Above

  • IC Core: info icon

    • 1C7A1-7 pin Best Uncombinated IC core with "A" keyway-ready to be keyed
    • 100CR/Contrl Ky-Keyed Arrow 6 Pin Small Format (Best type) Interchangeable Core
    • No IC Core Needed
  • Lever Style:

    • 14 Curved Return
    • 15 Contour Angle Return
    • 16 Curved

Product at A Glance

  • Accepts Best 7-pin interchangeable cores, core is not included
  • Inside rose is snap-on with no exposed mounting screws
  • Through-bolt mounting studs increase torque resistance
Style Interchangeable Core Lever
Grade Standard duty
Function Classroom - Can be locked/unlocked only by rotating the key in the outside lever- Inside lever is always free
Backset 2-3/8"
Handing Non-handed
Rose "D" style with 3-1/2" diameter
Door Thickness 1-3/8" to 2"
Latch - 1/2" throw deadlocking latch
- front: 2-1/4" x 1-1/8"
Strike S3 ANSI strike 4-7/8" x 1-1/4" with curved lip and box (ANSI A115.2 for 1-3/4" doors)

More Info


All Best Access Systems products are known for their high quality and efficient operation. This 7KC series lever lock is a superb product which fits the standards Best Access Systems has created for themselves. In addition, this lock is designed to work with interchangeable cores which makes it an even better option for all your commercial needs.
