Best 9K37BDS3-626

Special Order Heavy Duty Interchangeable Core Office Function Lever

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 9K37BDS3-626

Choose Options Below

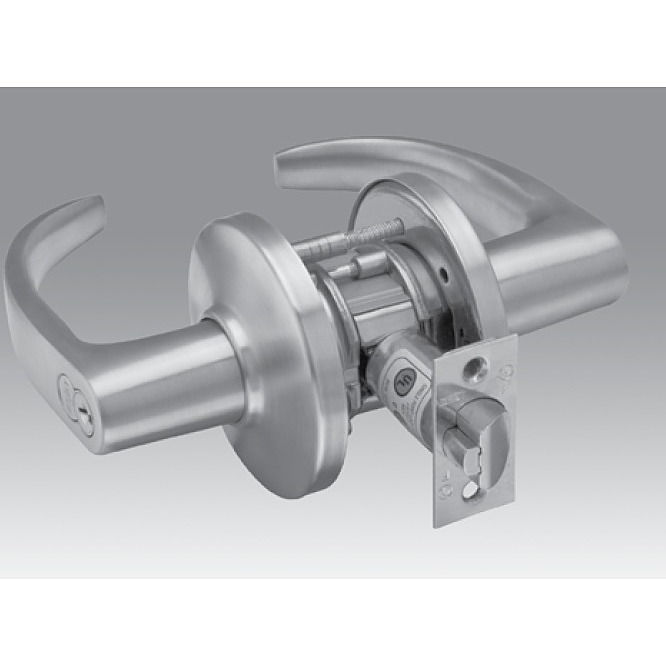

The Best Acces Systems 9K37B15DS3 office function heavy duty interchangeable core SFIC lockset allows immediate rekeying at the door simply by using the special control key to replace the core in seconds. Office function, push-button locking: Push-button locks the outside lever until it is unlocked by key or by turning the inside lever. Closing the door does not release the push button. Inside lever always free for immediate exit. ANSI Grade 1 locks are designed for heavy duty applications. Best Lock is now part of Stanley Security Solutions

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Lever Style:

14 Curved Return 14 Curved Return
15 Contour Angle Return 15 Contour Angle Return
16 Curved 16 Curved

Choose IC Core:

1C7A1-7 pin Best Uncombinated IC core with 1C7A1-7 pin Best Uncombinated IC core with "A" keyway-ready to be keyed +$28.00
100CR/Contrl Ky-Keyed Arrow 6 Pin Small Format (Best type) Interchangeable Core + $33.00 100CR/Contrl Ky-Keyed Arrow 6 Pin Small Format (Best type) Interchangeable Core +$33.00
No IC Core Needed

Help Me Decide

  • The Best Uncombinated 7 pin IC core 1C7A1-7 must be keyed by a locksmith. No keys, key blanks or control keys are included.
  • Arrow brand Small Format Keyed 6 pin IC core, is keyed different with 2 keys and includes a control key which is required to install and remove IC core.


Overview

Special order non stock item with 4 week lead time.
  • Heavy Duty grade 1 commercial office function lever.
  • Accepts Best 7-pin interchangeable core, core not included.
  • ADA compliant.
  • 2-3/4" backset.
  • Rose has a 3-1/2" diameter.
  • S3 ANSI strike -4-7/8” x 1-1/4” with curved lip.
  • Non handed. For doors 1-3/4" thick.
  • Through-bolt mounting studs increase torque resistance.
  • Satin chrome finish.

Available Options: Choose Options Above

  • Lever Style:

    • 14 Curved Return
    • 15 Contour Angle Return
    • 16 Curved
  • IC Core: info icon

    • 1C7A1-7 pin Best Uncombinated IC core with "A" keyway-ready to be keyed
    • 100CR/Contrl Ky-Keyed Arrow 6 Pin Small Format (Best type) Interchangeable Core
    • No IC Core Needed

More Info

  • Push-button locking: push-button locks the outside lever until it is unlocked by key or by turning the inside lever.
  • Closing the door does not release the push button.
  • Inside lever always free for immediate exit.
  • UL- 9K series listed by Underwriters Laboratories for use on 3 Hr, A label fire doors for single or double swinging doors.
  • Listed by BHMA for A156.2, Series 4000, Grade 1.
  • In addition to standard door preparation (ANSI A115.2 for 1 3/4” doors), two additional holes are needed for through-bolts.
  • Through-bolts require two 5/16” diameter holes located at 12 o’clock and 6 o’clock positions.
  • Latch– 1/2” throw deadlocking latch, front: 2 1/4” x 1 1/8”. . (ANSI A115.2 for 1 3/4” doors).
