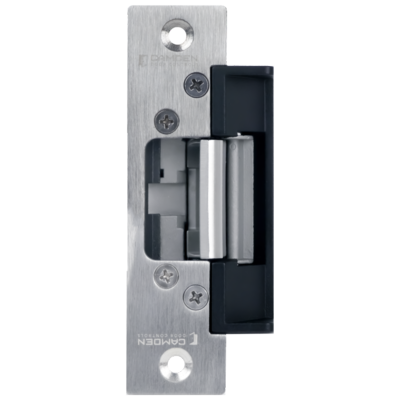

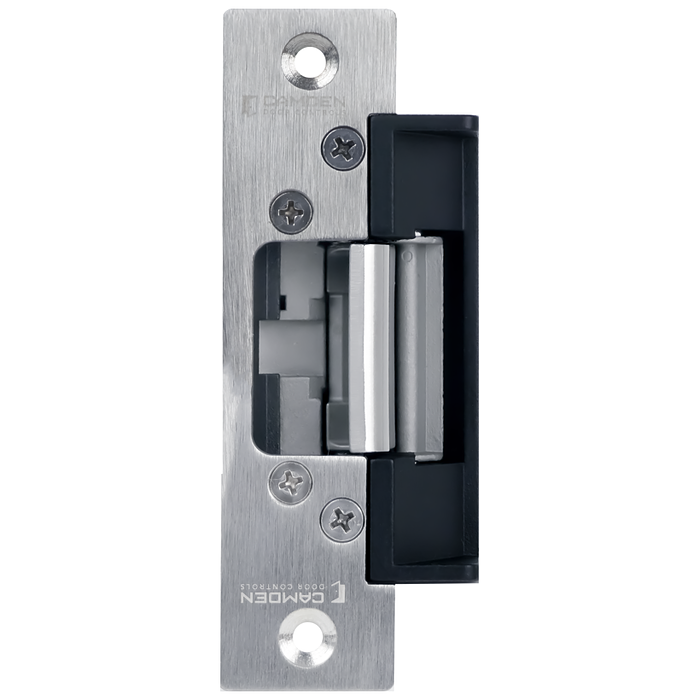

ANSI Strike, Low Profile, Fire Rated, Grade 1

Camden CX-ED1420

ANSI Strike, Low Profile, Fire Rated, Grade 1

Quick Product Details

  • ADD 2-3 DAYS FOR SHIPPING ON THIS ITEM
Price: $275.00 /each

SKU: CX-ED1420

ADD 2-3 DAYS FOR SHIPPING ON THIS ITEM - BHMA/ANSI A156.31, Grade 1 certified | Centerline latch entry for cylindrical locksets, with ANSI square faceplate | UL 90 minute fire and UL 1034 burglary listed|1/2" - 5/8" (12mm - 16mm) latch projection | Dual voltage 12/24V AC/DC|ANSI square faceplate included, 4-7/8" x 1-1/4" (124mm x 32mm)|Field selectable fail safe / fail secure operation|Trim plate included|5 year warranty

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Stock Item
  • FREE Same-Day Shipping*When ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Overview

Specifications:
  • Voltage=12 or 24V AC/DC
  • Current Draw=260 mA @ 12 VDC 150 mA @ 24 VDC
  • Static Hold Force=1,500 Lbs.|Dynamic Strength=70 Ft-Lbs.
  • Endurance=1,000,000 cycles (factory tested), 500,00 cycles (UL verified)
  • Fire Rating=90 minutes (UL verified)|Operation=AC - Buzz DC- Silent
  • Latch Projection=CX-ED1410: 5/8" - 3/4" (16mm - 19mm)
  • CX-ED1420: 1/2" - 5/8" (12mm - 16mm)
  • Mode=Field selectable fail safe / fail secure (Fire rated in fail secure mode only)
  • Duty=Continuous
  • CX-ED1420:3-3/8" L x 1-7/8" W x 1-3/16" D (86mm x 47mm x 31mm)
