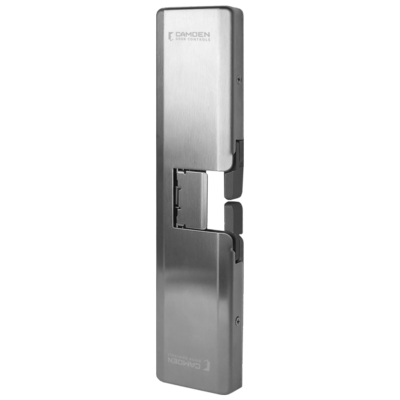

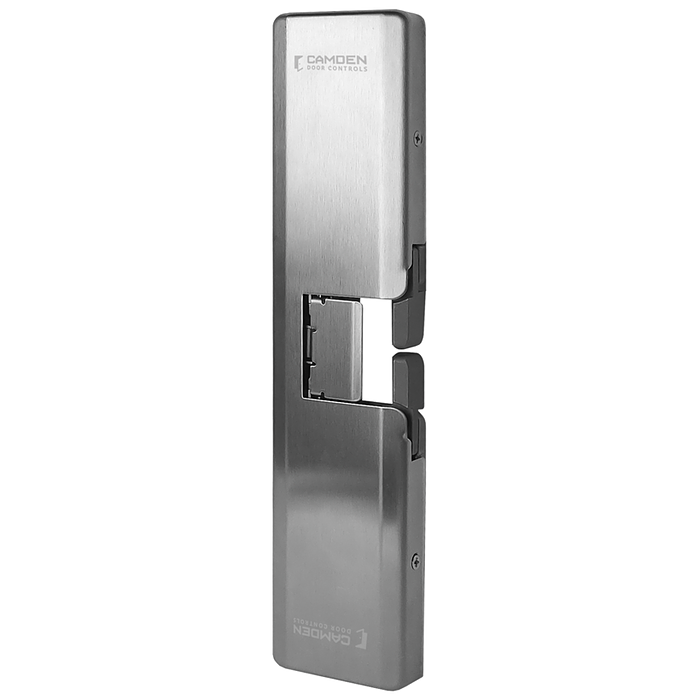

1/2" Rim electric strike with Preload and Latchbolt Monitoring

Camden CX-EPD1299L

1/2" Rim strike-Pre load c/w Latch Monitor

Quick Product Details

  • ADD 2-3 DAYS FOR SHIPPING ON THIS ITEM
Price: $409.00 /each

SKU: CX-EPD1299L

ADD 2-3 DAYS FOR SHIPPING ON THIS ITEM - "Universal" design, UL Security listed | 1/2" latch projection | Up to 15 lbs of preload pressure on strike keepers | Spacer plates included: 1/8" and 1/4" | Latch monitor included | Plug-in latch bolt monitor assembly included | Available in stainless steel and unique all-black finish | Non-handed, left or right | 5 year warranty | BHMA/ANSI A156.31, Grade 1 certified

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Stock Item
  • FREE Same-Day Shipping*When ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Overview

Specifications:
  • Latch Projection=1/2" or 3/4" with 1/8" or 1/4" Spacer Plates
  • Voltage=12/24V AC/DC
  • Current Draw=560mA @12V DC 280mA @24V DC
  • Static Strength=1,500 lbs. (UL Verified)
  • Dynamic Strength=70 ft-lbs.
  • Preload=15 lbs.
  • Endurance=1,000,000 Cycles (Factory Tested)
  • 500,000 Cycles (UL Verified)|Operation=AC Buzz, DC Silent
  • Mode=Field Selectable Fail Safe or Fail Secure
  • Duty=Continuous
  • Latch Monitor=SPDT, 100mA @ 24V DC, Resistive
  • Dimensions=9-3/16"H x 1-7/8"W x 9/16"D (233.2mm x 48.1mm x 14mm)

Product at A Glance

ADD 2-3 DAYS FOR SHIPPING ON THIS ITEM
