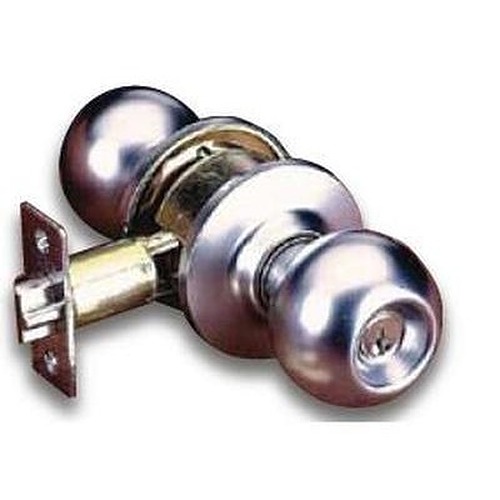

Corbin Russwin CK4451-GWC-B238-M14-630

Special Order Standard Duty Commercial Entrance/Office Knob Lock

Quick Product Details

  • Knobset
  • Standard Duty
  • Entrance/Office Function
  • 2-3/8" Backset
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: CK4451-GWC-B238-M14-630

Choose Options Below

This Corbin Russwin CK4451 is a standard duty entrance/office function cylindrical knobset which is ideally suited for quality residential applications as well as commercial areas. This product meets ANSI/BHMA A156.2 series 4000 Grade 2 requirements. 2-3/8 backset.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

630 - Satin Stainless Steel 630 - Satin Stainless Steel
612 - Satin Bronze + $9.00 612 - Satin Bronze +$9.00
613 - Oil Robbed Bronze + $9.00 613 - Oil Robbed Bronze +$9.00
605 - Polished Brass + $9.00 605 - Polished Brass +$9.00
629 - Polished Stainless Steel + $9.00 629 - Polished Stainless Steel +$9.00

Choose Knob Style:

GWC - Global GWC - Global

Choose Keyway:

L4-0 bitted ready to be keyed
D1-0 bitted ready to be keyed
60-0 bitted ready to be keyed
59A1-0 bitted ready to be keyed
No Cylinder Needed (LC) Subtract -($37.62)
L4-Keyed Random

Overview


Special order non stock item with 4 week lead time
  • Meets ANSI/BHMA A156.2 series 4000 Grade 2 strength and operational requirements
  • UL listed for A Label and lesser class single doors, 4' x 8'.
  • Deadlocking latch to prevent lock picking by credit card



Available Options: Choose Options Above

Product at A Glance

  • Pushing turn button in locks outside knob, requiring use of key outside to unlock. Turning inside knob unlocks outside knob.
  • Pushing in and turning button locks outside knob, requiring key at all times. Turning inside knob does not unlock outside knob until button is manually turned to unlocked position.
  •  Inside knob always free
Style Knob set
Grade Standard duty
Function Entrance or Office Function:
- Pushing turn button in locks outside knob, requiring use of key outside to unlock. Turning inside knob unlocks outside knob.
-Pushing in and turning button locks outside knob, requiring key at all times. Turning inside knob does not unlock outside knob until button is manually turned to unlocked position.
- Inside knob is always free
- ANSI F81
Handing Field reversible
Door Thickness Adjustable from 1-3/8" to 1-3/4"
Backset 2-3/8"
Strike ANSI curved lip - 4-7/8" x 1-1/4" x 1-1/4" lip (standard)
Latch Stainless steel
Throw 1/2"
Latch Front 2-1/4" x 1"

More Info


Corbin Russwin is a trusted brand that is dedicated to ensuring utmost customer satisfaction by continuously working to bring you products of the highest quality and endurance levels. Corbin Russwin also provides multiple feature and application options with each product to enable flexible mounting in various applications.
