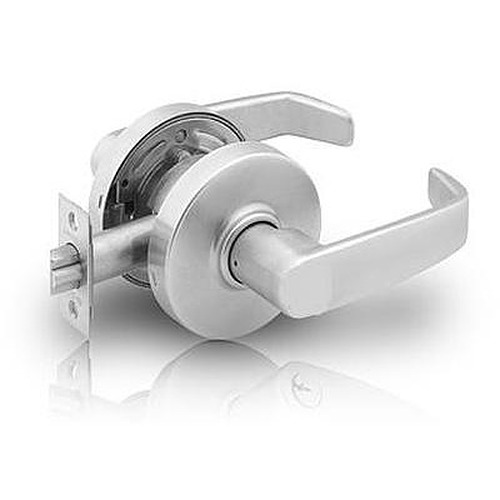

Corbin Russwin CL3810-606

Special Order Standard Duty Commercial Passage Lever

Call for Pricing 1-866-749-7661
Special Order non-stock item Requires 4 week lead time

SKU: CL3810-606

Choose Options Below

The Corbin Russwin CL3810 Passage lever is an economical, Grade 2 standard-duty lever lockset which provides an outstanding combination of value and performance. It's the ideal lever lockset for standard commercial applications.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Call for Pricing 1-866-749-7661

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Lever Style:

NZD - Newport NZD - Newport
AZD - Armstrong AZD - Armstrong
PZD - Princeton PZD - Princeton

Choose Backset:

2-3/4 2-3/4"
2-3/8 2-3/8"

Help Me Decide

The backset is the measured distance from the edge of a door to the center of the 2-1/8” bore hole.

Overview

Special order item with 4 week lead time.

  • Satin brass finish-606.
  • Standard duty cylindrical passage leverset
  • Door thickness-adjustable 1-3/8" to 1-3/4"standard. 2-3/4" backset standard, 2-3/8" available.
  • Latchbolt-stainless steel, 1/2" throw with 2-1/4" x 1-1/8" front
  • Strike-ANSI curved lip standard, 4-7/8" x 1-1/4" x 1-1/4" lip.
  • Anti-rotational through-bolts at 6 and 12 o’clock positions

Available Options: Choose Options Above

  • Lever Style:

    • NZD - Newport
    • AZD - Armstrong
    • PZD - Princeton
  • Backset: info icon

    • 2-3/4"
    • 2-3/8"

More Info

  • Independent return springs prevent lever sag
  • UL 3-Hour Fire Rating.
  • Function Passage-ANSI F75.
  • Latchbolt by lever either side. Both levers always free.
  • Meets A156.2 Series 4000, Grade 2.
  • Meets A117.1 Accessibility Code.
  • Avaliable as a special order with other finishes, lever styles and backset. Contact us directly to arrange your special order.
