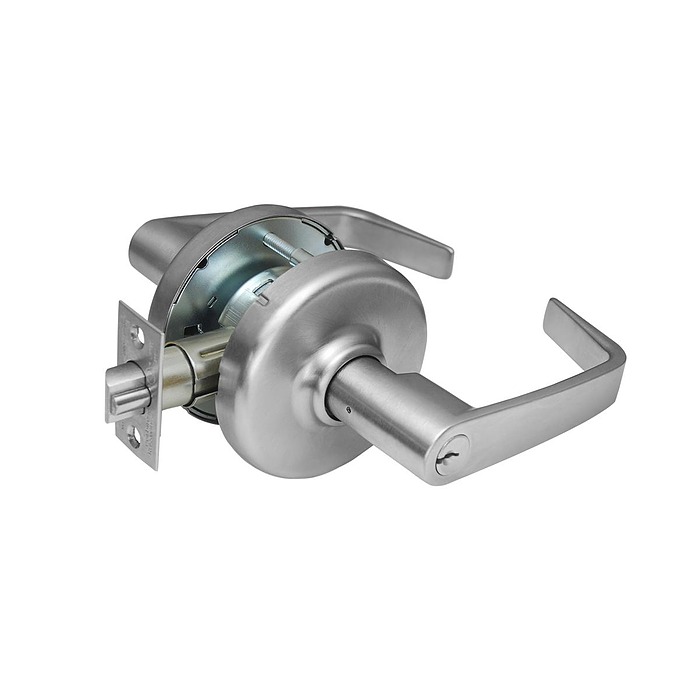

Corbin Russwin CL3855

Standard Duty Commercial Classroom Lever

Quick Product Details

  • Lever Set
  • Classroom Function
  • Standard Duty
Price: $162.00 /each

SKU: CL3855

Choose Options Below

This Corbin Russwin CL3855 lever set is ideal for use in standard commercial, institutional and multi-family applications. Select below the styles and finishes that suit your taste and the keyway and backset to fit the needs of your doors. This lock operates with classroom function.

  • In Stock!
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $162.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Lever Style:

NZD - Newport NZD - Newport
AZD - Armstrong AZD - Armstrong
PZD - Princeton PZD - Princeton

Choose Finish:

626 - Satin Chrome 626 - Satin Chrome
625 - Polished Chrome + $9.00 625 - Polished Chrome +$9.00
612 - Satin Bronze + $9.00 612 - Satin Bronze +$9.00
613 - Oil Rubbed Bronze + $9.00 613 - Oil Rubbed Bronze +$9.00
605 - Polished Brass + $9.00 605 - Polished Brass +$9.00

Choose Keyway:

Need Help Deciding?
L4 Keyway-0 bitted (ready to be keyed)
60 keyway-0 bitted (ready to be keyed)
59A1 keyway-0 bitted (ready to be keyed)
D1 keyway-0 bitted (ready to be keyed)
No Cylinder Needed (LC) Subtract -($41.80)
CL6 Prepped for Corbin IC 6 pin core, satin chrome finish and NZD lever only
M08 Prepped for Best type IC Core, satin chrome finish and NZD lever only

Help Me Decide

?

Choose Backset:

2-3/4 2-3/4"
2-3/8 2-3/8"

Help Me Decide

The backset is the measured distance from the edge of a door to the center of the 2-1/8” bore hole.

Overview


Quality and Safety:
  • Meets ANSI/BHMA A156.2 series 4000 Grade 2 requirements
  • UL listed for 3 hour fire rated doors
  • Meets A117.1 Accessibility Code
  • 7 year limited warranty

Special Orders Available:
  • More unlisted finishes available
  • More unlisted lever styles available
  • More unlisted backset options available
Contact us directly to place your special orders.


Available Options: Choose Options Above

  • Lever Style:

    • NZD - Newport
    • AZD - Armstrong
    • PZD - Princeton
  • Finish:

  • Keyway: info icon

    • L4 Keyway-0 bitted (ready to be keyed)
    • 60 keyway-0 bitted (ready to be keyed)
    • 59A1 keyway-0 bitted (ready to be keyed)
    • D1 keyway-0 bitted (ready to be keyed)
    • No Cylinder Needed (LC)
    • CL6 Prepped for Corbin IC 6 pin core, satin chrome finish and NZD lever only
    • M08 Prepped for Best type IC Core, satin chrome finish and NZD lever only
  • Backset: info icon

    • 2-3/4"
    • 2-3/8"

Product at A Glance

  • There are anti-rotational through-bolts at 6 and 12 o’clock positions
  • Independent return springs prevent lever sag
  • The vandal-resistant lever handle is freewheeling in locked position
Style Lever set
Grade Standard duty
Function Classroom Function:
- Lockable by key on the outside lever
- Inside lever is always free
- ANSI-F84
Handing Non-handed
Door Thickness 1-3/8" to 1-3/4"
Strike ANSI curved lip - 4-7/8" x 1-1/4" x 1-1/4" lip (standard)
Latch Stainless steel
Throw 1/2"
Latch Front 2-1/4" x 1-1/8"

More Info


Classroom function levers can be used in various applications other than classrooms as well. They can be locked on the outside lever using a key and the inside lever remains free for egress at all times. This lock will fit doors that are within the range of 1-3/8” to 1-3/4 thick in standard duty commercial, institutional or multi-family applications.
