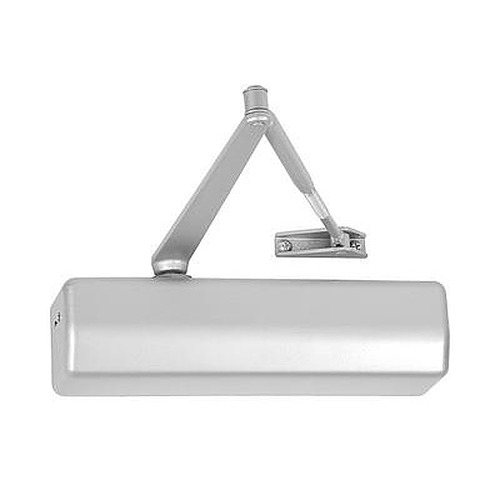

Corbin Russwin DC3210-691

Special Order Adjustable Door Closer with Light Bronze Finish

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: DC3210-691

Choose Options Below

The mid-priced, cost-effective choice for high-traffic situations. The Corbin Russwin DC3210 door closer fulfills security and life safety requirements by ensuring reliable latching for access control and fire code compliance. Ideal for virtually all door openings and draft conditions in new construction and renovations

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Hold Open:

Hold Open Arm (A1) +$38.00
No Hold Open

Help Me Decide

  • Hold Open arm - a door closer arm with the capability of holding the door in the open position until manually closed
  • Hold Open arm door closers are not permitted to be used on fire door assemblies.

Overview

Special order item with 4 week lead time
  • Adjustable sizes 1 through 6.
  • Light bronze painted finish.
  • Tri Pack-regular, parallel or top jamb mounting.
  • Cast iron body.
  • Quik-Install™ Bracket easier installation of closer body.
  • Up to full 180° opening.
  • Standard arm, non hold open.

Available Options: Choose Options Above

  • Hold Open: info icon

    • Hold Open Arm (A1)
    • No Hold Open

More Info

  • Quik-Install bracket size: 1-3/4" vertical x 6" horizontal.
  • Closer body mounting hole spacing: 1" vertical x 4-5/16" horizontal.
  • Meets A156.4, Grade 1.
  • UL /ULC / UL10c Listed for fire and cycle requirements.
  • Barrier-Free Code Compliance, conform to the 5 lb. maximum door opening force requirement for
    non-fire-rated interior hinged doors.
  • Latching speed, closing speed and backcheck intensity valves standard.
  • Standard: high lubricity extreme temperature hydraulic fluid.
