Corbin Russwin DC6210 A11 689 M54 M73 M103 W42

Special Order Heavy Duty Power Adjustable Door Closer with Unitrol arm

Call for Pricing 1-866-749-7661
Special Order non-stock item Requires 4 week lead time

SKU: DC6210 A11 689 M54 M73 M103 W42

Choose Options Below

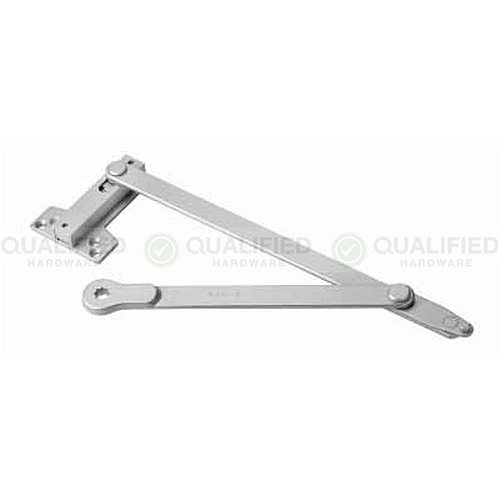

The Corbin Russwin DC6200 with Heavy-Duty Unitrol Spring Stop Parallel Arm.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Call for Pricing 1-866-749-7661

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

689 Silver Aluminum Painted 689 Silver Aluminum Painted

Choose Handing:

left HAND SHOWN Left Hand (LH)
RIGHT HAND SHOWN Right Hand (RH)

Help Me Decide



Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.



The door is Left Handed if:

   • While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Handed if:

   • While you are standing outside of the room facing the door, the hinges are on your right side.

Overview

Special order item with 4 week lead time.
  • The Unitrol arm is for a 48" wide door.
  • Unitrol arm-Heavy-duty spring stop parallel arm.Integrates a door closer, shock absorber and auxiliary heavy-duty
    overhead stop.
  • Deep reveal reinforcement Kit.
  • Recommended for high-use, high-abuse environments • Integrates a door closer, shock absorber and auxiliary heavy-duty
    overhead stop.
  • Adjustable spring size 1 through 6.
  • Handed.
  • Full metal cover.
  • Cast iron body.
  • Quik-Install™ Bracket easier installation of closer body.
  • Replaces Corbin 2800 series closers; has the same mounting hole pattern.

Available Options: Choose Options Above

  • Finish:

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)

More Info

  • Captured valves for high-abuse situations
  • Quik-Install bracket size: 1-3/4" vertical x 6" horizontal.
  • Closer body mounting hole spacing: 1" vertical x 4-5/16" horizontal.
  • Meets A156.4, Grade 1.
  • UL /ULC / UL10c Listed for fire and cycle requirements.
  • Barrier-Free Code Compliance, conform to the 5 lbf. maximum door opening force
    requirement for non-fire-rated interior hinged doors
  • Latching speed valve, closing speed valve standard.
  • Multiple backcheck location valve and backcheck intensity valve standard.
  • Standard: high lubricity extreme temperature hydraulic fluid
