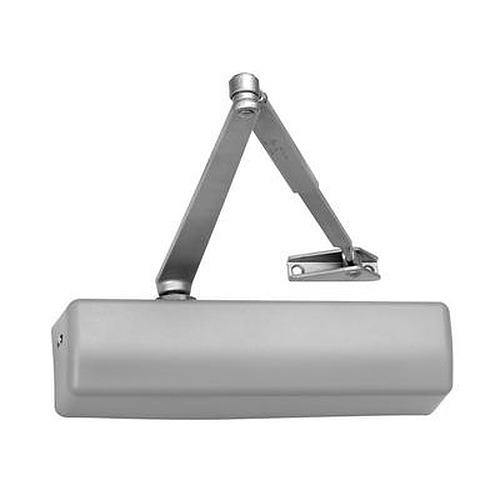

Corbin Russwin DC6210-A3

Special Order Power Adjustable Door Closer with Heavy-Duty Parallel Arm

Quick Product Details

  • Power Adjustable Door Closer
  • Heavy-Duty Parallel Arm
  • Push Side Mount
SKU: DC6210-A3

Price: Call for Pricing 1-866-749-7661

Special Order non-stock item Requires 4 week lead time

Choose Options Below

This Corbin Russwin DC6210 is a power adjustable door closer which complies with the ADA five pound maximum door opening force barrier free requirements for non-fire-rated interior hinged doors. This closer is of superior quality and exceeds 10 million cycles in usage.With heavy-duty parallel arm recommended for high-use, high-abuse environments.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Price: Call for Pricing 1-866-749-7661

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

689 (Aluminum Painted) 689 (Aluminum Painted)
690 (Dark Bronze Painted) 690 (Dark Bronze Painted)

Overview

Special order non stock item with  4 week lead time
  • Parallel Arm Mounting DC6210, allows inside application of closer on out-swinging doors. Closer is mounted on the push side, with the arm almost parallel to the face of the door
  • Meets ANSI A156.4 Grade 1 requirements
  • Replaces discontinued 100/110/120/2800 series Corbin door closers.
  • Exceeds 10 million cycles in usage
  • UL /ULC / UL10c listed for fire and cycle requirements.
  • Barrier-Free Code Compliance, conform to the 5 lb. maximum door opening force requirement for non-fire-rated interior hinged doors (ADA)
  • Quik-Install™ Bracket for easier installation of closer body
  • Quik-Install bracket size: 1-3/4” vertical x 6" horizontal

Available Options: Choose Options Above

Product at A Glance

  • Adjustable spring sizes 1 through 6.
  • A3 Heavy-Duty Parallel Arm.
  • Features captured valves for high-abuse situations.
  • Quik-Install™ Mounting Bracket size: 1-3/4" x 6".
  • Closer mounting bracket hole spacing: 1" vertical x 4-5/16" horizontal.
  • Double heat-treated steel pinion.
  • Cast iron body.
  • Separate latching speed, closing speed and backcheck valve supplied.
  • Supplied with high lubricity extreme temperature hydraulic fluid.
  • Replaces Corbin 2800 series closers (has the same mounting hole pattern).
Style Door Closer
Grade Heavy Duty
Door Handing Non-handed
Opening Degrees Up to 180°
Quik-Installâ„¢ Mounting Bracket Bracket is first mounted to door or frame, then closer is attached to bracket
