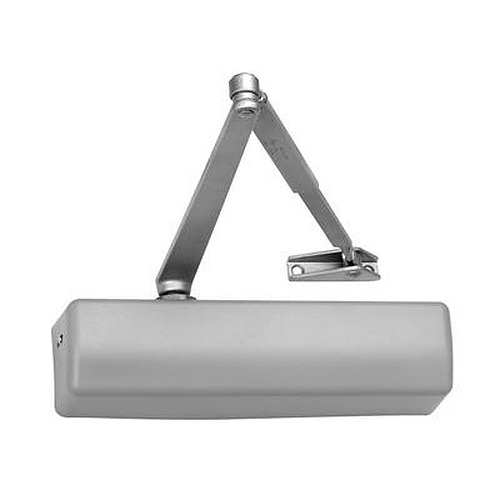

Corbin Russwin DC6210-M71

Special Order Heavy Duty Power Adjustable Door Closer

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: DC6210-M71

Choose Options Below

The Corbin Russwin DC6200 door closer is the perfect closer for high-use openings or openings that must meet ADA requirements, such as schools, office buildings, health care facilities, and retail complexes

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

689 (Aluminum Painted) 689 (Aluminum Painted)
690 (Dark Bronze Painted) 690 (Dark Bronze Painted)

Overview

Special order item with 4 week lead time.
  • With Delayed Action,Slows door closing speed between maximum opening and approximately 70°. Often specified to meet barrier-free codes
    which require longer closing times. Also used in high traffic situations (auditoriums, classrooms, etc.) or when carts and gurneys are pushed through the doors.
  • Adjustable sizes 1 through 6
  • Non-handed
  • Tri Pack-regular, parallel or top jamb mounting
  • Cast iron body
  • Quik-Install™ Bracket easier installation of closer body
  • Up to full 180° opening
  • Heavy-duty forged standard arm, non hold open
  • Replaces Corbin 2800, 2810 and 2820 series closers, has the same mounting hole pattern.

Available Options: Choose Options Above

More Info

  • Captured valves for high-abuse situations
  • Quik-Install bracket size: 1-3/4" vertical x 6" horizontal.
  • Closer body mounting hole spacing: 1" vertical x 4-5/16" horizontal.
  • Parallel Arm Mounting DC6210, allows inside application of closer on out-swinging doors. Closer is mounted on the push side, with the arm almost parallel to the face of the door. Arm does not project from the opening
  • Meets A156.4, Grade 1.
  • UL /ULC / UL10c Listed for fire and cycle requirements.
  • Barrier-Free Code Compliance, conform to the 5 lbf. maximum door opening force
    requirement for non-fire-rated interior hinged doors
  • Latching speed valve, closing speed valve standard.
  • Multiple backcheck location valve and backcheck intensity valve standard.
  • Standard: high lubricity extreme temperature hydraulic fluid
