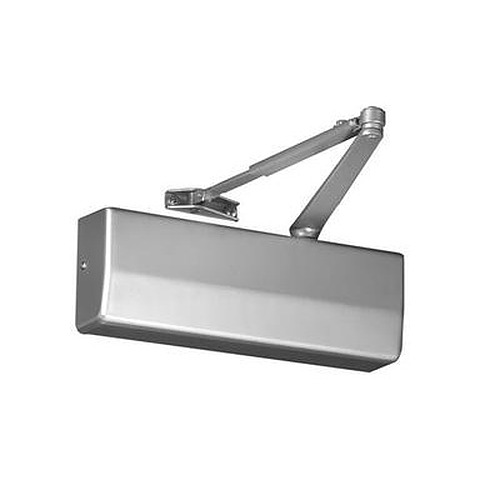

Corbin Russwin DC8210

Heavy Duty Institutional Power Adjustable Door Closer

Quick Product Details

  • Power Adjustable Door Closer
  • Heavy Duty
Price: $468.00 /each

SKU: DC8210

Choose Options Below

This Corbin Russwin DC8210 is an institutional power, adjustable door closer with high endurance for heavy traffic applications. It is the perfect solution for openings that must conform to ADA - barrier free requirements.This closer is also listed for UL/ULC/UL10c fire and cycle requirements.

  • Stock Item
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $468.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

689 (Aluminum Painted) 689 (Aluminum Painted)
690 (Dark Bronze Painted) 690 (Dark Bronze Painted)

Choose Hold Open:

Hold Open Arm (A1) +$58.00
No Hold Open

Help Me Decide

  • Hold Open arm - a door closer arm with the capability of holding the door in the open position until manually closed
  • Hold Open arm door closers are not permitted to be used on fire door assemblies.

Replacing Your Door Closer?

Product Finder

Overview


Quality and Safety:
  • Meets ANSI A156.4 Grade 1 requirements
  • Exceeds 10 million cycles in usage
  • UL /ULC / UL10c listed for fire and cycle requirements.
  • Barrier-Free Code Compliance, conform to the 5 lbf. maximum door opening force requirement for non-fire-rated interior hinged doors (ADA)
  • 25 year limited warranty

Convenience:
  • Quik-Install™ Bracket Easier installation of closer body
  • Quik-Install bracket size: 3-5/8” vertical x 11-1/2” horizontal, hole spacing: 1" vertical x 10" horizontal

Available Options: Choose Options Above

  • Finish:

  • Hold Open: info icon

    • Hold Open Arm (A1)
    • No Hold Open

Product at A Glance

  • Adjustable spring sizes 1 through 6
  • Tri Pack - regular, parallel or top jamb mounting
  • Features captured valves for high-abuse situations
  • Double heat-treated steel pinion
  • Cast iron body
  • Includes a heavy-duty forged standard arm
  • Separate latching speed, closing speed and backcheck valves supplied.
  • Features high lubricity extreme temperature hydraulic fluid
Style Door closer
Grade Heavy Duty
Door Handing Non-handed
Opening Degrees Up to 180°

More Info


The DC8210 is a fantastic, versatile closer. It includes many features, that make this closer perfect for applications with a high traffic rate, to provide you with years of uncompromised satisfaction. This closer has passed the test for ten million usage cycles, which proves its unbelievable strength and durability. For flexibility, its spring size is adjustable from size 1 through 6.
