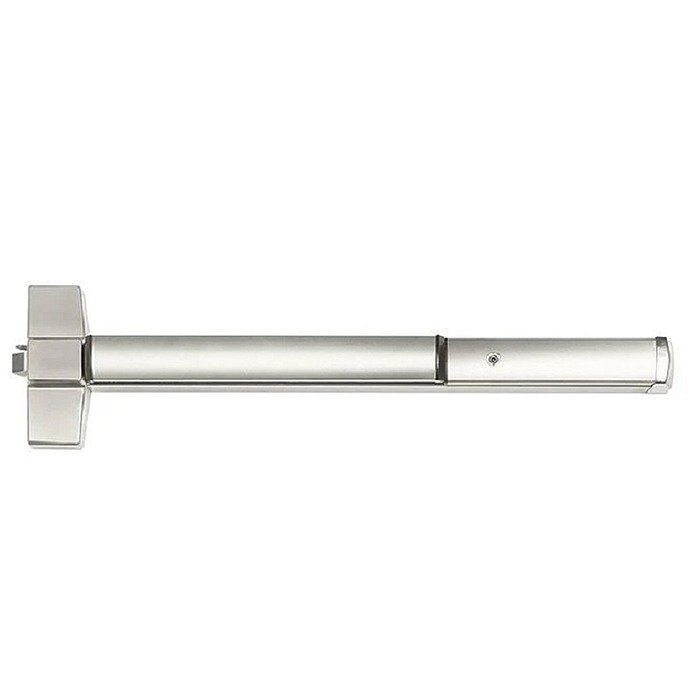

Corbin Russwin ED5200

Rim Exit Device

Quick Product Details

  • Rim Exit Device
Price: $1,236.00 /each

SKU: ED5200

Choose Options Below

This Corbin Russwin ED5200 rim exit device is ideal for frequent use applications such as schools, factories, hotels, theaters, office and retail complexes. Rigorous testing has proved its strength and durability and it is backed by a 5 year warranty.

  • Stock Item
  • Order in the next 18 hours 21 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $1,236.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

630 - Satin Stainless Steel 630 - Satin Stainless Steel

Choose Rail Size:

48" Bar Lenght (WO48) +$28.00
36" Bar Length Standard (WO36)

Help Me Decide

  • 36” bar fits 30” - 36” door
  • 48"bar fits 36"- 48" door
  • Can easily be cut to size within the field


  • Meets ANSI A156.3, Type 4, Grade 1 requirements
  • Meets A117.1 Accessibility Code
  • UL /cUL, All devices listed for safety as panic hardware; devices comply with UL 305 standards.
  • 5 year limited warranty

Available Options: Choose Options Above

  • Finish:

  • Rail Size: info icon

    • 48" Bar Lenght (WO48)
    • 36" Bar Length Standard (WO36)

Product at A Glance

  • Exit only, trim and cylinder are not included
  • A through-bolted lever, knob or pull trim is available separately
  • Features hex key dogging standard. Dogging is not available on fire rated devices
  • Surface mounted 3/8” roller strike, with positive locking plate and shims
  • Available as UL Three-hour fire-rated device listed as fire exit hardware for A label and lesser class 4' x 8' single or 8' x 8' double doors (ED5200A)
Style Rim exit device
Door Handing Non-handed
Door Thickness 1-3/4" (standard)
Projection - 3-1/4" when active
- 2-3/4" dogged
Latch Pullman type with stainless steel deadlocking latch
Throw 3/4"
Stile Minimum 4-1/2" wide

More Info

Corbin Russwin’s ED5000 series has been rigorously tested and been proven to withstand more than six times the required cycle amounts. In addition, not only is the quality of this exit device superior, the aesthetics of this product have also been precisely designed to please the decor in any application. This exit device will satisfy the needs of nearly any high use area.



Instructions & Templates

Click on the links below to download helpful instructions & templates for this product
