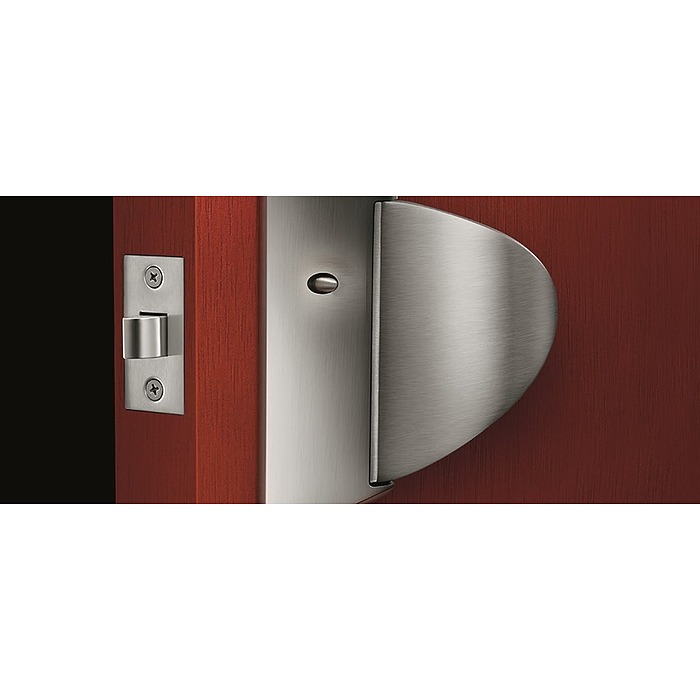

Corbin Russwin HP3020-HPSK-630

Special Order Push/Pull Paddle Privacy Latch

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: HP3020-HPSK-630

Choose Options Below

This is a non stock item that ships direct from Corbin. The Corbin Russwin HP3020 hands free touchless tubular Privacy push/pull paddle trim provides an aesthetically pleasing alternative to products with standard push/pull trim. Its heavy-duty design and ANSI/BHMA Grade1 strength help it to withstand abuse from rigorous environments. The HP3020 is ideal for use in healthcare facilities and educational facilities.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose MicroShield(R):

MicroShield-antimicrobial coating-630C + $57.00 MicroShield-antimicrobial coating-630C +$57.00
No MicroShield coating No MicroShield coating

Help Me Decide

  • MicroShield® technology, a silver-based antimicrobial coating designed to inhibit the growth of bacteria.
  • Applications: Anywhere there is need for a clean environment , hospitals, laboratories, schools, medical centers, daycare, food processing.
  • MicroShield® coating permanently suppresses the growth of bacteria, algae, fungus, mold and mildew. It is effective against a broad spectrum of bacteria.
  • As an integral part of the finish coating, MicroShield® lasts for the life of the hardware.
  • Non-toxic and completely safe. The Agion antimicrobial compound is EPA and NSF approved and FDA listed for use in medical and food preparation equipment.

Choose Backset:

5" Standard Backset
2-3/4" Backset


Special order item with 4 week lead time. handed.
  • Inside paddle always retracts latch.
  • Outside paddle retracts latch, except when locked by inside push button.
  • Closing door unlocks outside paddle
  • Includes emergency release
  • Vertical orientation required
  • Ideal for bathrooms
  • Handed
  • Privacy trim can only be mounted vertically
  • Door thickness 1-3/4"standard.
  • 5" backset  or 2-3/4"
  • Latch-1/2" throw.
  • Strike- ANSI curved lip strike standard, 4-7/8" x 1-1/4" x 1-1/4" lip to center.

Available Options: Choose Options Above

  • MicroShield(R): info icon

    • MicroShield-antimicrobial coating-630C
    • No MicroShield coating
  • Backset:

    • 5" Standard Backset
    • 2-3/4" Backset

More Info

  • ANSI Meets A156.2 Series 1000 Grade 1.
  • UL/cUL Listed for use on 3 hour fire doors.
  • ADA Meets A117.1 Accessibility Code.



Instructions & Templates

Click on the links below to download helpful instructions & templates for this product
