Corbin Russwin ML2024-NSA-RWA-612-625-MT3-625

Special Order Complete Entrance Function Mortise Lock with Lever and Rose

Quick Product Details

  • Exterior Lever and Deadbolt in 612 with Satin Bronze and interior lever in 625 Polished Chrome.
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: ML2024-NSA-RWA-612-625-MT3-625

Choose Options Below

Complete mortise locks contain everything needed for new or replacement installation. The Corbin ML2024-NSA-RWA-612-625-MT3 with split finish complete Entrance mortise lock.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Need Help Deciding? QH chevron down
Left Hand Reverse (LHR)
Right Hand Reverse (RHR)
Left Hand (LH)
Right Hand (RH)

Help Me Decide



Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.


When you are standing outside of the room facing the door and the hinges are on your left side:

  • If the door swings away from you it is Left Handed
  • If the door swings towards you it is Left Hand Reversed


When you are standing outside of the room facing the door and the hinges are on your right side:

  • If the door swings away from you, it is Right Handed
  • If the door swings towards you, it is Right Hand Reversed

Overview

Special order non stock item with 6 week lead time
  • Complete entrance function mortise lock.
  • "A" style rose has a 2-1/4" diameter.

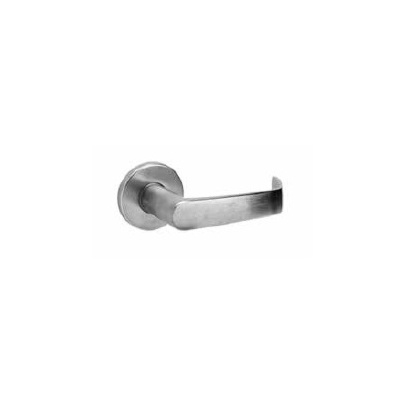

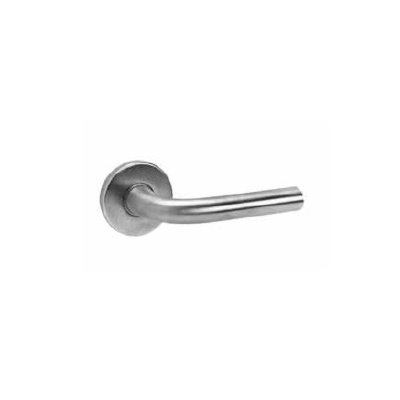

  • With Split finish. NSA 612 satin bronze lever on exterior and RWA 625 polished chrome  lever on the interior.
  • Includes 1-1/8" mortise cylinder.
  • Complies with ADA- American Disability Act.
  • Backset- 2-3⁄4".
  • Lock body-5-7/8" x 4" x 15/16".
  • For doors 1-3⁄4" thick.Lock are furnished right hand, quick reversible.
  • The lockset can be re-handed without disassembling the lock case.

Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand Reverse (LHR)
    • Right Hand Reverse (RHR)
    • Left Hand (LH)
    • Right Hand (RH)

More Info

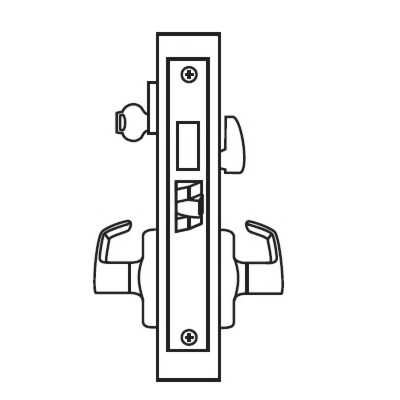

  • Entrance function.
  • Latchbolt by lever either side when deadbolt is retracted.
  • Deadbolt by key outside or by thumbturn inside.
  •  Latchbolt retracted by key outside.
  • Both levers outside and inside are locked when deadbolt is projected.
  • No simultaneous deadbolt and latch retraction.
  • Strike-ANSI Standard 4-7⁄8", 1-1/4" straight lip.
  • Outside front plate-8" x 1-1⁄4", accommodates flat doors and doors beveled 1/8" in 2".
  • ANSI - Meets A156.13 Series 1000, Operational and Security Grade 1.
