Corbin Russwin ML2030-MSL-613E

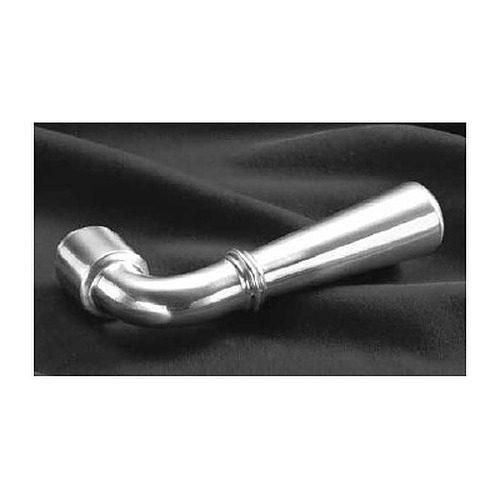

Special Order Complete Privacy Function Mortise Lock with Merlot Lever and L Escutcheon

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: ML2030-MSL-613E

Choose Options Below

Complete mortise locks contain everything needed for new or replacement installation. The Corbin ML2030-MSL privacy function, deadbolt by thumbturn inside or by emergency release tool outside. Inside lever simultaneously retracts latchbolt and deadbolt and unlocks outside lever.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left Hand Reverse - LHR
Right Hand Reverse - RHR

Help Me Decide

Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.

​Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your right side.

Overview

Special order non stock item with 4 week lead time
  • With "L" style Escutcheon and  Merlot lever (MS)
  • Privacy with deadbolt function, Latchbolt by lever either side unless outside lever locked by thumbturn
  • Deadbolt by thumbturn inside or by emergency release tool outside.
  • Inside lever simultaneously retracts latchbolt and deadbolt and unlocks outside lever.
  • Dark bronze equivalent-613E finish.
  • Lock are furnished right hand, quick reversible. The lockset can be re-handed without disassembling the lock case.


Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand Reverse - LHR
    • Right Hand Reverse - RHR

More Info

  • Backset- 2-3⁄4".
  • Body, 5-7/8" x 4" x 15/16".
  • ADA-complies with American Disability Act.
  • Strike-ANSI Standard A115.1; 4-7⁄8" high, 1-1/4" curved lip, non-handed
  • Outside front plate-8" x 1-1⁄4", accommodates flat doors and doors beveled 1/8".
  • ANSI- Meets A156.13 Series 1000, Operational and Security Grade 1.
