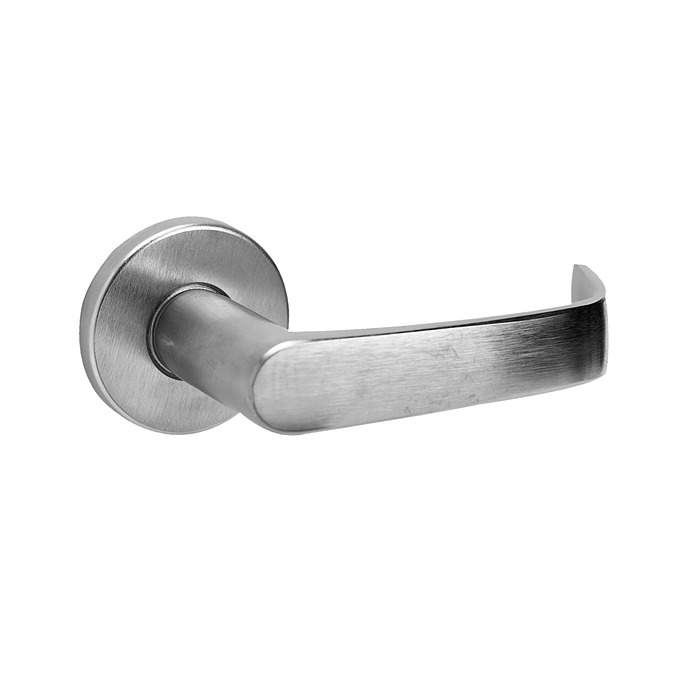

Corbin Russwin ML2057-626

Complete Storeroom Function Mortise Lock with Lever and Rose

Price: $843.00 /each

SKU: ML2057-626

Choose Options Below

Complete mortise locks contain everything needed for new or replacement installation. The Corbin ML2057 storeroom function, Latchbolt by lever inside or by key outside. Outside lever always locked. Inside lever always free.

  • Stock Item
  • Order in the next 17 hours 19 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $843.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Lever style:

PSA-Princeton lever with PSA-Princeton lever with "A" rose
NSA-Newport  lever with NSA-Newport lever with "A" rose
ASA-Armstrong lever with ASA-Armstrong lever with "A" rose

Help Me Decide

"A"style rose has a diameter of 2-1/4"

Choose Finish:

626 - Satin Chrome (US26D) 626 - Satin Chrome (US26D)

Choose Cylinder:

1-1/8 Mortise Cylinder
No Cylinder Needed +$75.00
CLS6-Prepped for Smal Format IC Core. Core Not Included.

Overview

  • Choose from 3 lever styles with "A" style rose.
  • 2-1/4" diameter rose.
  • Storeroom function, Latchbolt by lever inside or by key outside.
  • Outside lever always locked.
  • Inside lever always free.
  • 1-1/8" mortise cylinder included, L4 keyway.
  • Satin chrome finish.
  • Inside lever always free.
  • Lock are furnished right hand, quick reversible. The lockset can be re-handed without disassembling the lock case.


Available Options: Choose Options Above

  • Lever style: info icon

    • PSA-Princeton lever with "A" rose
    • NSA-Newport lever with "A" rose
    • ASA-Armstrong lever with "A" rose
  • Finish:

  • Cylinder:

    • 1-1/8 Mortise Cylinder
    • No Cylinder Needed
    • CLS6-Prepped for Smal Format IC Core. Core Not Included.

More Info

  • Backset- 2-3⁄4".
  • Body, 5-7/8" x 4" x 15/16".
  • ADA-complies with American Disability Act.
  • Strike-ANSI Standard A115.1; 4-7⁄8" high, 1-1/4" curved lip, non-handed
  • Outside front plate-8" x 1-1⁄4", accommodates flat doors and doors beveled 1/8".
  • ANSI- Meets A156.13 Series 1000, Operational and Security Grade 1.
