Corbin Russwin ML2057-GZH-612-LC

Special Order Complete Storeroom Function Mortise Lock with Lever and Rose

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: ML2057-GZH-612-LC

Choose Options Below

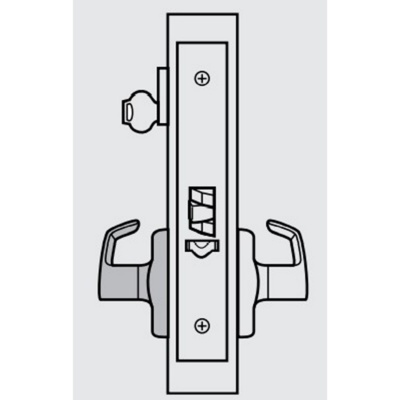

Complete mortise locks contain everything needed for new or replacement installation. The Corbin ML2057 storeroom function, latchbolt by lever inside or by key outside. Outside lever always locked. Inside lever always free.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Need Help Deciding? QH chevron down
Left Hand Reverse (LHR)
Right Hand Reverse (RHR)
Left Hand (LH)
Right Hand (RH)

Help Me Decide



Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.


When you are standing outside of the room facing the door and the hinges are on your left side:

  • If the door swings away from you it is Left Handed
  • If the door swings towards you it is Left Hand Reversed


When you are standing outside of the room facing the door and the hinges are on your right side:

  • If the door swings away from you, it is Right Handed
  • If the door swings towards you, it is Right Hand Reversed

Overview

  • With GZH style knob and rose.
  • 612, satin bronze finish.
  • Less cylinder.
  • 2-1/4" diameter rose.
  • Storeroom function, Latchbolt by lever inside or by key outside.
  • Outside lever always locked.
  • Inside lever always free.
  • Inside lever always free.
  • Lock are furnished right hand, quick reversible. The lockset can be re-handed without disassembling the lock case.


Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand Reverse (LHR)
    • Right Hand Reverse (RHR)
    • Left Hand (LH)
    • Right Hand (RH)

More Info

  • Backset- 2-3⁄4".
  • Body, 5-7/8" x 4" x 15/16".
  • ADA-complies with American Disability Act.
  • Strike-ANSI Standard A115.1; 4-7⁄8" high, 1-1/4" curved lip, non-handed
  • Outside front plate-8" x 1-1⁄4", accommodates flat doors and doors beveled 1/8".
  • ANSI- Meets A156.13 Series 1000, Operational and Security Grade 1.
