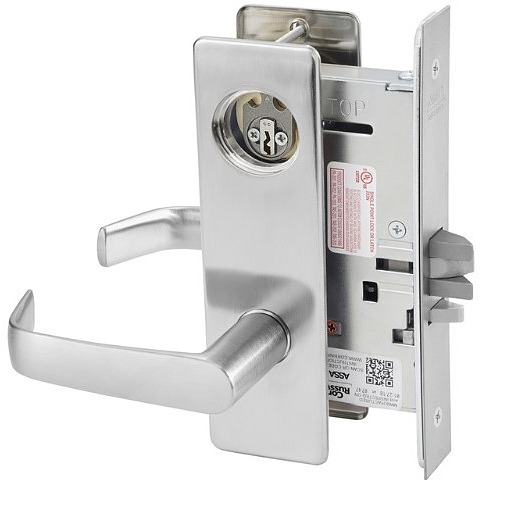

Corbin Russwin ML2057-NSM-626-LC

Complete Lever and Escutcheon Trim Kit for ML2057 Storeroom Function-Less Cylinder

Price: $832.00 /each

SKU: ML2057-NSM-626-LC

Choose Options Below

The Corbin Russwin ML2057-NSM-626- is a complete trim pack with the Newport style lever and the "M" style Escutcheon Plate.

  • Stock Item
  • Order in the next 37 hours 19 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $832.00

Choose Finish:

626 - Satin Chrome (US26D) 626 - Satin Chrome (US26D)

Overview

  • Newport (NS) Lever with "M" style Escutcheon Plate design trim for ML2057 mortise lock.
  • Complete trim sets include spindles, trim pack assemblies, instruction sheets, and templates.
  • Satin chrome finish-626.
  • Complies with codes requiring lever to return to within 1/2" of door face.
  • Trim kits do not include the mortise lock body, cylinder, face plate or strike.

Available Options: Choose Options Above

Product at A Glance

Function:

  • Latchbolt by grip inside or by key outside.
  • Outside grip always rigid.
  • Auxiliary latch deadlocks latchbolt.
  • Inside grip always free.

Specifications:
  • ANSI/BHMA Code: A156.13
  • ANSI/BHMA Series: Series 1000
  • Backset Depth (Standard): 2 3/4"
  • Cylinder Format: Conventional, Large Format, Small Format
  • Cylinder Pins: 6 pin, 7 pin
  • Door Thickness (Standard): 1 3/4"
  • Door Type: Bullet-Resistant Doors, Wood, Hollow Metal
  • Handing: Field Reversible
  • Latchbolt Throw: 3/4"
  • Maximum Backset: 2 3/4"
  • Maximum Door Thickness: 4"
  • Minimum Backset: 2 3/8"
  • Minimum Door Thickness: 1 3/8"
  • Supplied less Cylinder
  • Strike Type (Standard): ANSI Straight Lip
  • UL Listed: Yes
  • ULC Listed: Yes
  • Warranty: 10-year limited warranty

More Info


Certifications:
  • ASTM E330 Certified
  • Environmental Product Declaration (EPD)
  • CAL FIRE, 3775-1305:0130
  • UL listed and UL10c compliant
  • Americans with Disabilities Act (ADA) Compliant
  • Buy American Act
  • UL-cUL Listed for use on fire doors having a rating up to and including 3-hours
  • Florida Building Code Windstorm Certified
  • ANSI/BHMA A156.13, Series 1000, Operational and Security Grade 1
  • grip always free.

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Scroll for More Product Information
