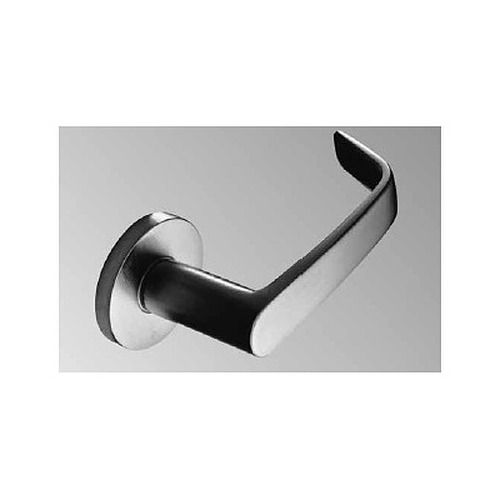

Corbin Russwin ML2065-626

Special Order Complete Dormitory or Entrance Function Mortise Lock with Lever and Rose

Call for Pricing 1-866-749-7661
Special Order non-stock item Requires 6 week lead time

SKU: ML2065-626

Choose Options Below

Complete mortise locks contain everything needed for new or replacement installation. The Corbin ML2065 complete Dormitory or Entrance mortise lock, outside lever locked or unlocked by projection of deadbolt. Inside lever simultaneously retracts latchbolt and deadbolt and unlocks outside lever.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Call for Pricing 1-866-749-7661

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Lever style:

PSA-Princeton lever with PSA-Princeton lever with "A" rose
NSA-Newport  lever with NSA-Newport lever with "A" rose
ASA-Armstrong lever with ASA-Armstrong lever with "A" rose

Help Me Decide

"A"style rose has a diameter of 2-1/4"

Choose Finish:

626 - Satin Chrome (US26D) 626 - Satin Chrome (US26D)

Choose Cylinder:

1-1/8" Mortise Cylinder-L4 Keyway
No Cylinder Needed Subtract -($47.40)

Overview

Special order non stock item with 6 week lead timne
  • Complete Dormitory or entrance function mortise lock.
  • "A" style rose has a 2-1/4" diameter.
  • Includes 1-1/8" mortise cylinder.
  • Satin chrome finish.
  • Complies with ADA- American Disability Act.
  • Backset- 2-3⁄4".
  • Lock body-5-7/8" x 4" x 15/16".
  • For doors 1-3⁄4" thick.
  • Lock are furnished right hand, quick reversible. The lockset can
    be re-handed without disassembling the lock case.

Available Options: Choose Options Above

  • Lever style: info icon

    • PSA-Princeton lever with "A" rose
    • NSA-Newport lever with "A" rose
    • ASA-Armstrong lever with "A" rose
  • Finish:

  • Cylinder:

    • 1-1/8" Mortise Cylinder-L4 Keyway
    • No Cylinder Needed

More Info

  •     Ansi F13-2065- Dormitory or entrance function.
  •     Latchbolt by lever either side unless outside lever is locked by projection of deadbolt.
  •     Deadbolt thrown or retracted by key outside or by thumbturn inside.
  •     Inside lever simultaneously retracts latchbolt and deadbolt and unlocks outside lever.
  •     Inside lever always free.
  •     Strike-ANSI Standard 4-7⁄8", 1-1/4" straight lip.
  •     Outside front plate-8" x 1-1⁄4", accommodates flat doors and doors beveled 1/8" in 2".
  •     ANSI - Meets A156.13 Series 1000, Operational and Security Grade 1.
