Corbin Russwin ML2065-NSF-626

Special Order Complete Dormitory Function Mortise Lock

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: ML2065-NSF-626

Choose Options Below

No one can stock every item from every vendor. We will gladly special order any item from any of the vendors we carry. Please call us for pricing and availability for that hard to find item or finish.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Need Help Deciding? QH chevron down
Left Hand Reverse (LHR)
Right Hand Reverse (RHR)
Left Hand (LH)
Right Hand (RH)

Help Me Decide



Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.


When you are standing outside of the room facing the door and the hinges are on your left side:

  • If the door swings away from you it is Left Handed
  • If the door swings towards you it is Left Hand Reversed


When you are standing outside of the room facing the door and the hinges are on your right side:

  • If the door swings away from you, it is Right Handed
  • If the door swings towards you, it is Right Hand Reversed

Overview

Special order item with 4 week lead time

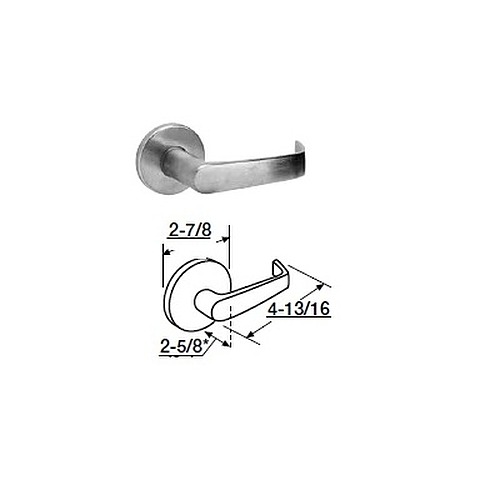

  • Dormitory function complete mortise lock with NS lever and 2-7/8" cast rose "F"
  • For 1-3/4 " thick doors
  • 2-3/4 backset
  • Handing is Field reversible
  • Includes mortise cylinder with L4 keyway.

Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand Reverse (LHR)
    • Right Hand Reverse (RHR)
    • Left Hand (LH)
    • Right Hand (RH)

More Info

  • Ansi F13-2065-Apartment or Dormitory
  • Latchbolt by lever either side unless outside lever locked by projection of deadbolt.
  • Deadbolt thrown or retracted by key outside or by thumbturn inside.
  • Inside lever simultaneously retracts latchbolt and deadbolt and unlocks outside lever.
  • Inside lever always free.
  • Auxiliary latch deadlocks latch
  • Lock body-5-7/8" x 4" x 15/16".
  • Strike-ANSI Standard 4-7⁄8", 1-1/4" straight lip.
  • Outside front plate-8" x 1-1⁄4", accommodates flat doors and doors beveled 1/8" in 2".
  • ANSI - Meets A156.13 Series 1000, Operational and Security Grade 1.
