Detex 20-W-693-HD-97-36-120-EC1-SN1

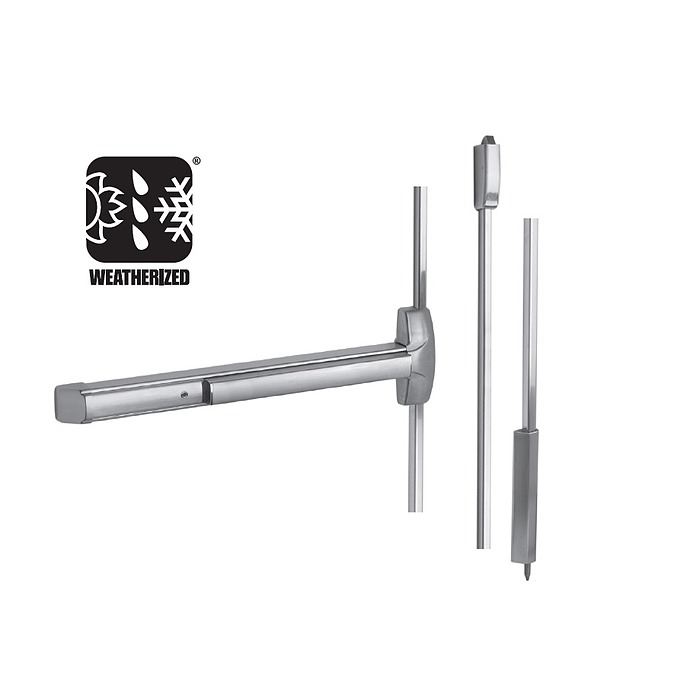

Special Order Weather Resistant Surface Vertical Rod Exit Device

Call for Pricing 1-866-749-7661
Special Order non-stock item Requires 4 week lead time

SKU: 20-W-693-HD-97-36-120-EC1-SN1

Choose Options Below

The 20xW Series surface vertical rod exit device is super-heavy-duty panic and fire exit hardware for use on all types of double doors or gates without a mullion that are or may be exposed directly to the weather.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Call for Pricing 1-866-749-7661

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left Hand Reverse - LHR
Right Hand Reverse - RHR

Help Me Decide

Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.

​Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your right side.

Overview

Special order non stock item with 4 week lead time
  • Tough and durable design for years of trouble-free service in high-use, high-abuse or inclement
    weather environments.
  • For 36" wide door, 10' tall and 1-3/4" thick.
  • Door Types - Wood, Hollow Metal, Fiberglass or Aluminum.
  • 693 black panted finish.
  • Stainless steel deadlocking, Pullman-type top latch.
  • Hardened steel bottom drop bolt with dust proof strike.
  • 1/8 turn hex dogging.
  • Handed - field reversible.
  • Minimum Stile - 4-1/2” with standard 97 strike.

Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand Reverse - LHR
    • Right Hand Reverse - RHR

More Info

  • In addition to listing as UL panic and fire exit hardware device, this device conforms to UL1034-34 Temperature Section 34, UL1034-54 Dust Section 54, MIL-STD 810F, Method 506.4 (driving rain test); and MIL-STD 810F, Method 509.4 (salt fog test).
  • Meets ADA requirements.
