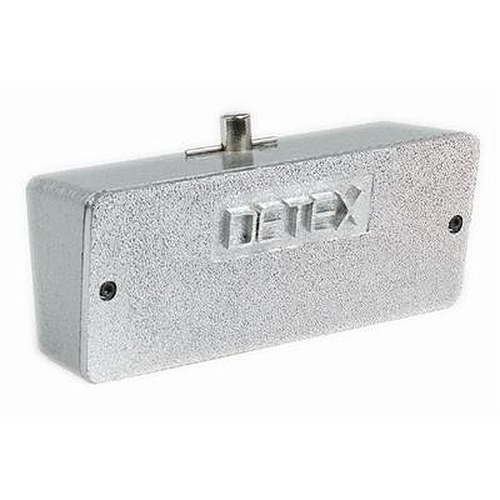

Detex DDH-2250

Double Door Holder

Quick Product Details

  • Double Door Holder
  • Used With: Detex 230 and V40 Exit Control Locks
Price: $156.00 /each

SKU: DDH-2250

This Detex DDH-2250 is a double door holder used with Detex 230 and V40 exit control locks. It is used to provide locking of the inactive leaf on an outswinging door.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Stock Item
  • Order in the next 5 hours 13 minutes to ship TODAY
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Product at A Glance

  • Double Door Holder is designed for use with Detex Exit Control Locks to provide locking of the inactive leaf on an outswinging double door.
  • Release of the active leaf disengages the DDH-2250 allowing the inactive leaf to open freely.
  • Activating  the exit control lock by pushing the bar and opening the active leaf, automatically disengages the DDH-2250, providing instant emergency exit of both doors.
  • Housing is cast in 3/16" durable zinc alloy with a textured finish on the 1/4” thick faceplate.
  • Mounting-kit contains screws, allen wrench, strike plate, door protection plate and templates
  • For mounting on either the left or right door
  • Case hardened steel locking bolt is actuated by an interchangeable pin, allowing the DDH-2250 to be mounted on either leaf of a double door opening. The unit automatically locks the inactive leaf in position when the active leaf is closed.
  • Stainless steel spring provides instant release of the lock bolt in an emergency egress situation.
Used With Detex 230 and V40 exit control locks
Dimensions 7-1/8" long x 2-1/4" deep x 2-7/8" high
Style Double Door Holder

More Info


This double door holder allows for the latching of the inactive leaf ( inactive door) of a pair of double doors. When the active door is activated by depressing push bar, the inactive leaf will also unlatch thereby allowing both doors to swing freely. This holder can be used with Detex 230 and V40 series exit control locks.
