Detex EAX-300

Door Propped Alarm

Quick Product Details

  • Door Propped Alarm
SKU: EAX-300

Price: $152.00 /each

Choose Options Below

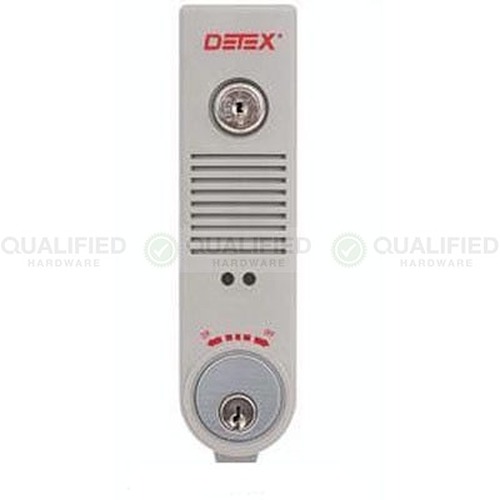

This Detex EAX-300 is a door propped alarm that is powered by a standard 9 volt battery battery. It is used in applications where the doors may be used for exit or entry, but may not be held or propped open. The alarm will stop ringing as soon as the door closes.

  • In Stock!
  • Order in the next 7 hours 13 minutes to Ship TODAY
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $152.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Cylinder 1-1/8" Mortise:

Help Me Decide

  • 1-1/8" Mortise cylinder required with standard Yale cam to arm/disarm alarm
  • Mortise cylinder includes 2 keys.




Available Options: Choose Options Above

  • Cylinder 1-1/8" Mortise: info icon

    • 1-1/8" Satin Chrome Mortise Cylinder Schlage C Keyway
    • No Mortise Cylinder needed

Product at A Glance

  • Door open times from 1 second to 4 minutes (15 second default) are field selectable
  • Alarm silences when door is closed, no waiting for key-holder to arrive
  • Surface door mount only
  • 1-1/8” Mortise cylinder required with standard Yale cam to arm/disarm alarm (not included)
  • 9 VDC battery powered with Low Battery Alert
  • LED visual arming indicators
  • Approximate 100dB piezo alarm
  • Mortise cylinder keyswitch arming
  • Audible arming indicators
Style Door propped alarm
Stile Minimum 2" narrow
Finish Grey



Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Door Propped Alarm

Detex EAX-300 Installation Video thumbnail

Detex EAX-300 Installation Video
