Detex EAX-500W

Weatherized Surface Mounted Exit Alarm

Quick Product Details

  • Exit Alarm
  • Weatherized
  • Surface Mounted
Price: $230.00 /each


Choose Options Below

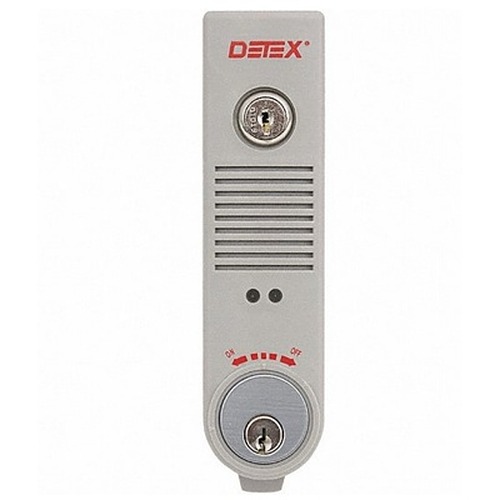

This Detex EAX-500W is a weatherized exit alarm that can be surface door mounted only. It is a self-concealed alarm that audibly indicates unauthorized use of an emergency exit or restricted door.

  • Limited Stock!
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $230.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Cylinder 1-1/8:

1-1/8 1-1/8" Satin Chrome Mortise Cylinder Schlage C Keyway +$15.00
No Mortise Cylinder needed

Help Me Decide

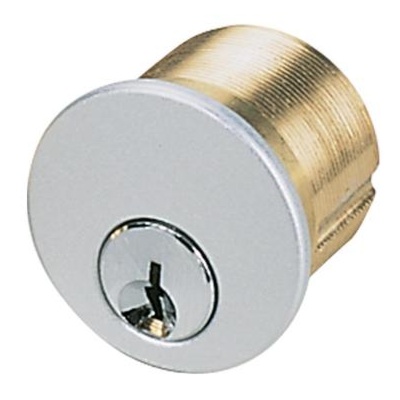

  • 1-1/8" Mortise cylinder required with standard Yale cam to arm/disarm alarm
  • Mortise cylinder includes 2 keys.




Available Options: Choose Options Above

  • Cylinder 1-1/8: info icon

    • 1-1/8" Satin Chrome Mortise Cylinder Schlage C Keyway
    • No Mortise Cylinder needed

Product at A Glance

  • Weatherized electronics certified to Driving Rain and Salt Fog Test
  • 1-1/8” Mortise cylinder required with standard Yale cam to turn on alarm or off, not included
  • 9 VDC battery powered with Low Battery Alert
  • LED visual arming indicators
  • Alarm accepts 5, 6 and 7 pin standard and interchangeable core mortise cylinders with a standard Yale cam. Cylinders not included
  • Extended bypass allows alarm to remain bypassed when the door is open and automatically rearm upon door closing
  • Approximate 100dB piezo alarm
  • Mortise cylinder key-switch arming
  • Manual arming, disarming and rearming
  • Audible arming indicators
  • Field selectable 2-minute auto rearm
  • Field selectable status indicators
  • In-swinging door applications might require use of inswinging kit (#102644 )
Style Weatherized Exit Alarm
Wiring Surface mounted
Stile Minimum 2" narrow
Finish Grey

More Info

This exit alarm is perfect for all your restricted and emergency exits that are generally exposed to the weather or are in a wet environment. The tapered, small size of the alarm, makes it suitable for use even on doors with a narrow stile. It is battery operated and it requires a 1-1/8” mortise cylinder in order to arm and disarm the alarm.
