Detex ECL-230D-PH

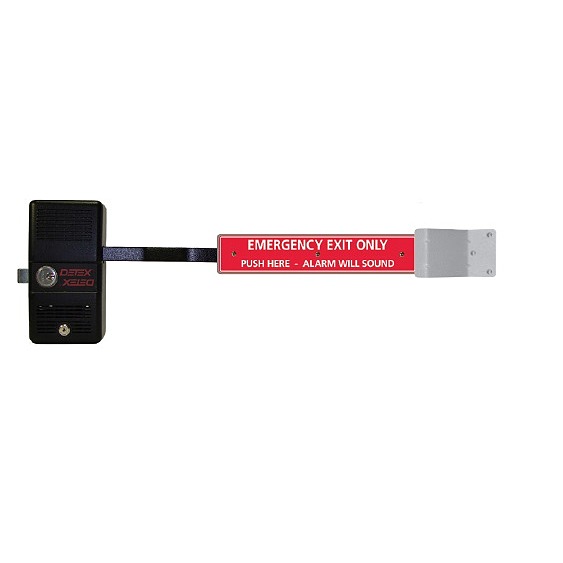

Special Order ECL-230D-PH Alarmed Panic Exit Device

Price: $269.00 /each
Special Order non-stock item Requires 6 week lead time


Detex ECL-230D-PH Alarmed exit control device. A code compliant, battery alarmed, rugged dead bolt, panic device with steel plate for secondary exits. This model has an extended paddle for doors wider than 36".

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Special Order
  • FREE Shipping

Have a question about this product?


  Special order non stock item with 8 week lead time.

This alarmed panic device has the same features and benefits as the standard ECL-230D with the addition of an extended paddle for doors wider than 36".

Product at A Glance

  • 36” to 48” Door Width
  • Requires at least one rim cylinder  (Cylinder not included)
  • For operation from both sides of the door, two rim cylinders are required.
  • Accepts 5-pin through 7-pin standard and interchangeable core rim cylinders
  • ECL-1595 - Cylinder Collar is required for 6 or 7 pin cylinders. Not included.
  • Features a 100 decibel alarm, which is powered by a 9-volt battery (included)
  • Locking and unlocking the deadbolt always arms and disarms the alarm
  • Resetting the alarm can only be done with a control key
  • Includes machine and sheet metal screws (Standard)
  • The lock  body is corrosion resistant
Application Wood, hollow metal, and aluminum doors
Handing Non-handed
Door Thickness 1-3/4" to 2-1/4"
Door width 36" to 48" Door Width
Stile Maximum - 5-3/4" with ECL-437K strike (standard)
- Minimum - 1-7/8" with ECL-475 Kit (decorative backplate kit ,not included)
